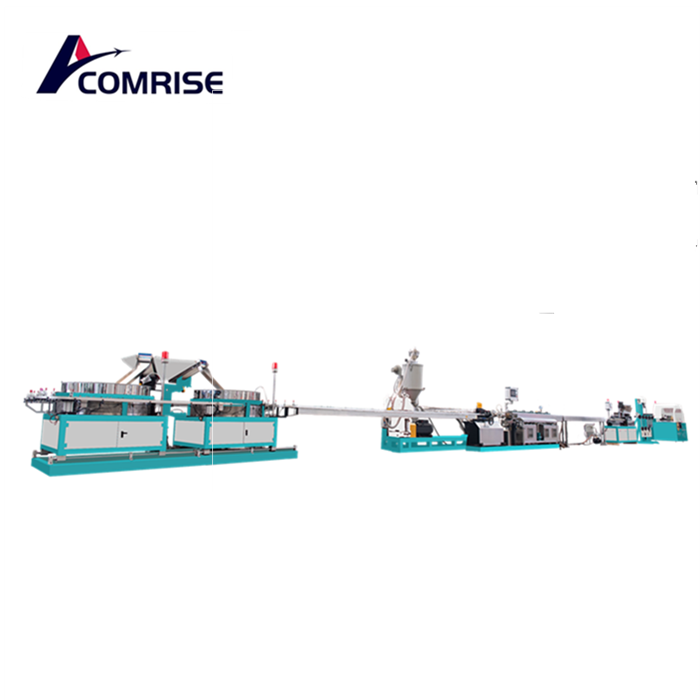

Drip Irrigation Pipe Production Line

Flat panel emitter drip irrigation tape production line

characteristic:

Drip irrigation pipe production line

1. The dropper is injection molded in one go and has a wide and long flow channel. It serves as a filter window and has strong anti clogging performance.

2. Good uniformity of water output. The drip head is directly welded to the drip irrigation pipe, reducing pressure loss and saving water.

3. It can achieve the simultaneous use of water and fertilizer, improve fertilizer utilization efficiency, save labor and fertilizer

4. Adopting a labyrinth flow channel with a certain pressure compensation effect.

5. The dropper is integrated with the pipeline, easy to install and use, low cost, and low investment.

6. Drip irrigation pipes of different specifications are suitable for different irrigation situations,

The distance between the dripper and can be adjusted according to the needs of different crops to meet different customers.

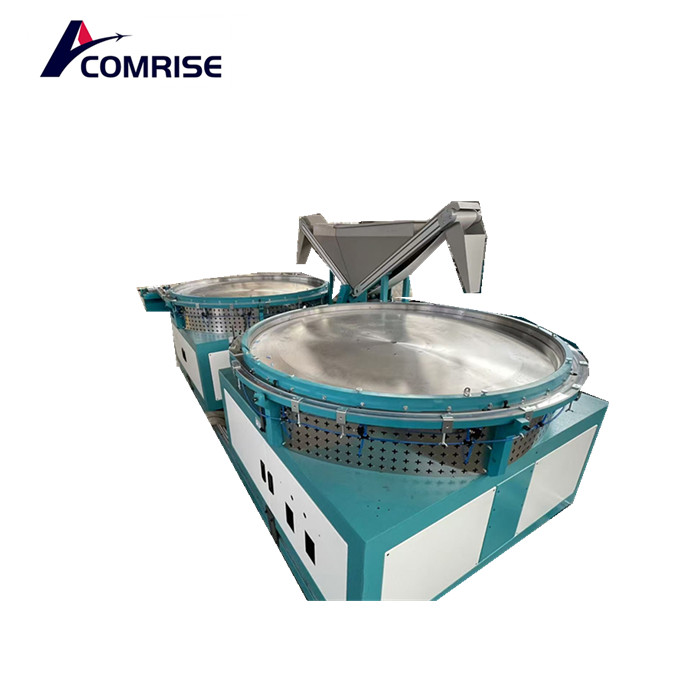

Drip head screening, conveying, embedding unit

Drip Irrigation Pipe Production Line machine has a diameter of 1580mm and is compatible with both large and small pieces. We have improved the manufacturing process Centrifugal pneumatic recognition, frequency conversion control.

Recognition speed: Droplets<2500.

Applicable droplet head size: 23mm * 6mm * 2.1mm, conveying speed>3000 pieces/minute

Can adapt to patch compatible lengths of 18MM-20-23-24-25-27-30

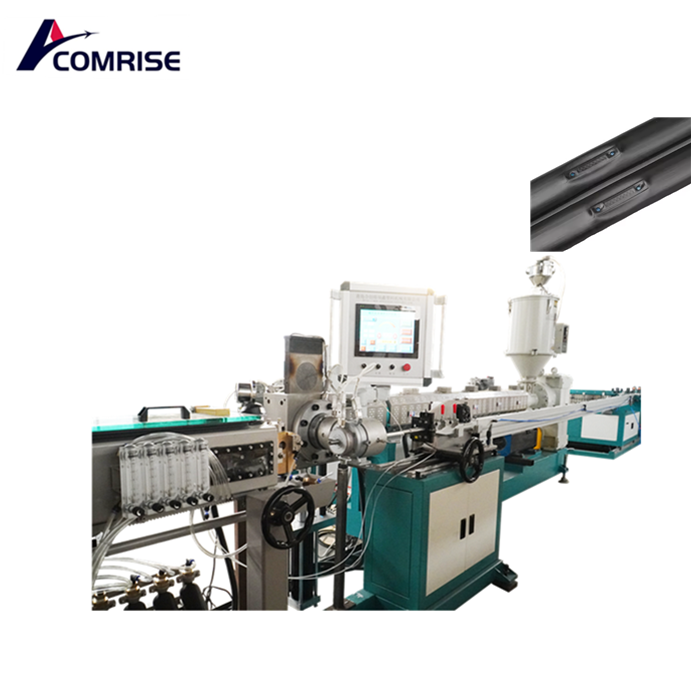

Single screw extruder SJ-90/33 Single screw extruder(90) Screw,

Drip Irrigation Pipe Production Line machine maximum extrusion capacity: 180kg/h.

It can adapt to raw material production and 90% recycled material production.

Motor: 75kw Huichuan servo or Guomao+Huichuan servo controller

Equipped with pressure transmitter, without color code machine.

A set of semi-automatic 160mm hydraulic screen changer

Gearbox: (Guomao or Jiangzi). Model (250).

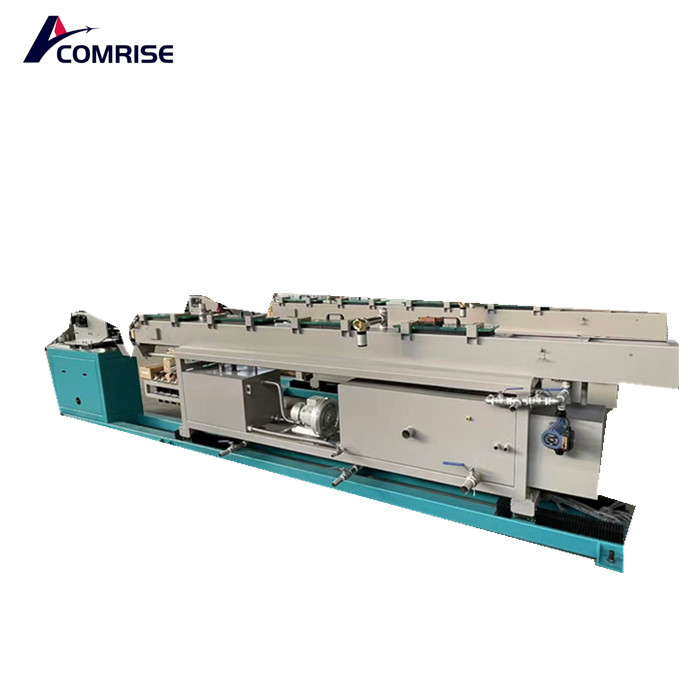

Stainless steel vacuum sizing cooling water

Length 4 meters

Including dropper attachment sizing device

Including vacuum generation control system

Including pinhole and hole detection device

Including a broken pipe detection device

Stainless steel cooling water tank

Pipe diameter: φ16mm

Total length of sink: (6) meters

Stainless steel 304 material, adjustable height

hauling machine

Double synchronous belt traction, pneumatic clamping

Panasonic servo motor control, motor power 3.0kw

Traction speed: 0-450m/min

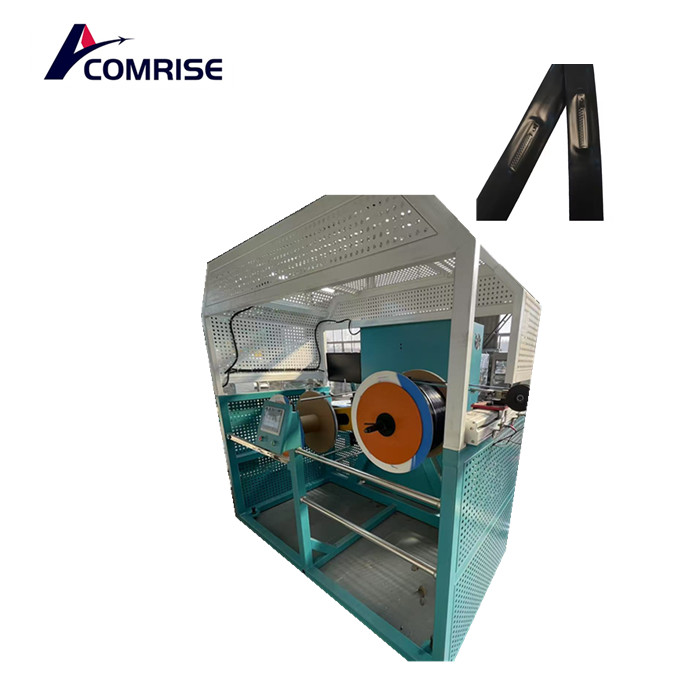

Dual station automatic winding machine

Drip Irrigation Pipe Production Line machine Automatic meter cutting for forming tube strips.

2.0KW * 2 servo motor brand: Panasonic

Maximum speed of 450 meters per minute

Next step is automatic

Host: Huichuan servo or Guomao; Siemens PLC; Siemens touch screen; Schneider contactors and relays; Other servos: Panasonic brand.

Alarm functions for production line configuration: screen replacement pressure prompt, pinhole and hole detection, drip head shortage alarm, pipe breakage detection, drilling error alarm.

One click start function, automatic disconnection function, can achieve quick startup by one person, reducing waste.

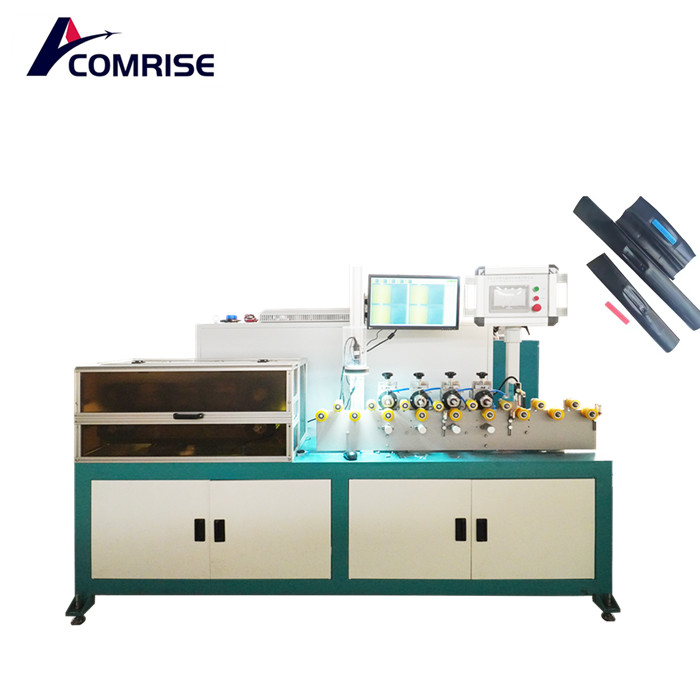

Punching camera dual screen display

We have improved our manufacturing process and upgraded our technology. As a top machine manufacturing factory in China, we will strive to move forward
