Single wall corrugated pipe production machine

Main Features

1. Suitable to produce Single wall corrugated pipe production machine

2. Raw Material: PP PE PVC granule.

3. Production speed: 20-40kg/h.

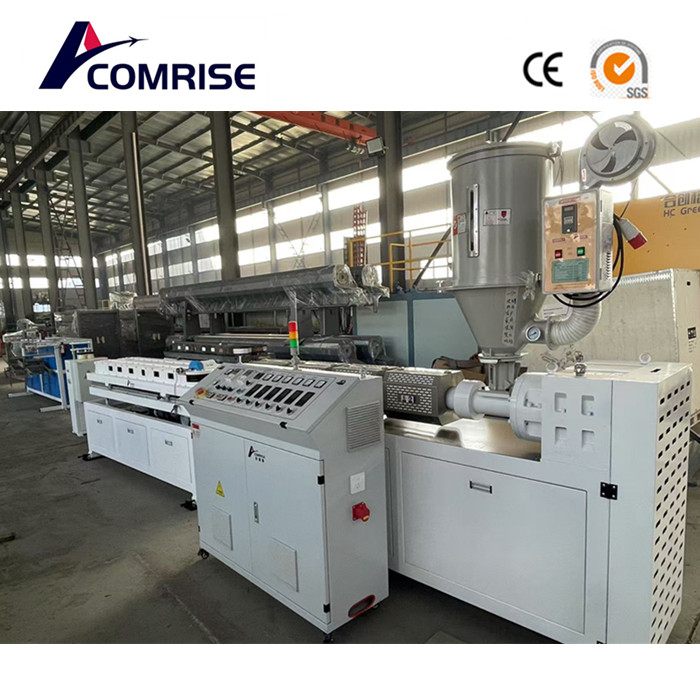

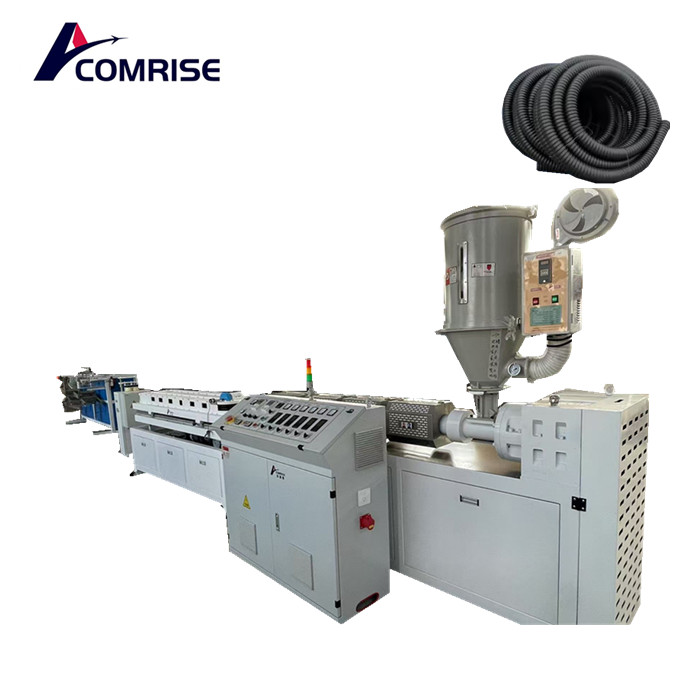

4. Mainly includes: vacuum drying auto feeder, Single Screw Extruder, die head, Core bar and mouth mold, Pipe Forming Machine, Winder.

5. Supply technical service, formula guide and staple raw material purchase

China good machine supplier

Our Advantages

1. mold without chains running with a high speed in the rail.

2. Forming machine with a large cooling area, temperature fast cooling down, so the speed will faster. Normally 20-30 meter/minute according to different pipe diameters.

3. All parts are using domestic and foreign well-known brands.supplier good quaility

2,Main single screw extruder

The extruder consist of the screw pole, cylinder, reducer, extruder head's stand, the water and wind cooling system, the lubricating system, temperature-controlling system, speed-changing cabinet etc.All the parts be made by reputed manufacturer and the reputed supplier brand.

We adopt special screw for different raw material and different pipe diameter, so the raw material can be well plasticization and get goo quality pipes.The extruder will suit many standards and applications in the corrugated pipe manufacturing. A unique screw and barrel combination, perfected through theoretical studies.The screw pole will be made of alloy steel and processed nitrogenous. It will have excellent ability of hardness. At the same time, it will be wear-resisting and corrosion-resisting.

Proven design and reliability is the main features of the low noise gearbox. Splash lubrication will ensure minimum maintenance requirements.The gears in the reducer and the bearings will be lubricated by the standard way.At the same time, the lubricating system of the oil pump will be designed to circulate the machine oil compulsively.

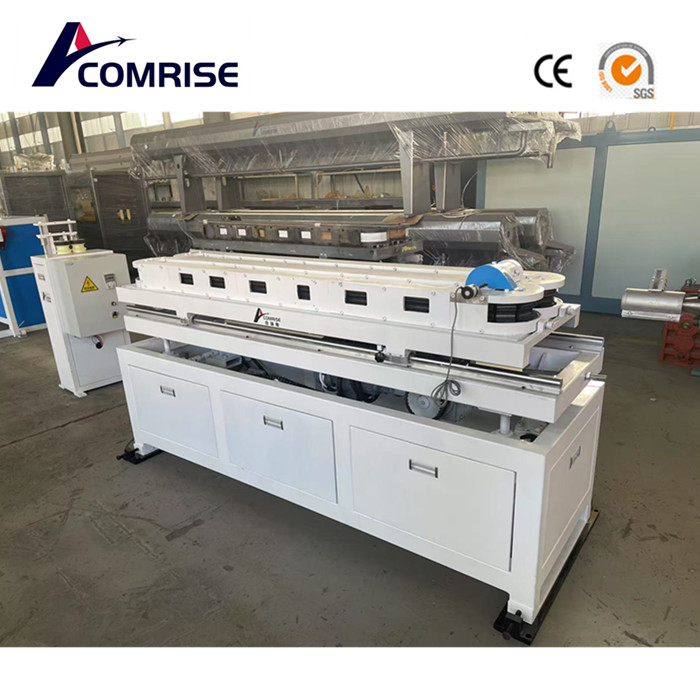

Energy efficient generators come from the Siemens brand. Moreover, the motor and the reducer are directly connected through the coupling, which service life is longer.3,Forming machineWe have two type of forming machine according the module connection method.One is the module block assembled through the chain shaft,and the chain pieces, then drive by the gears to move on the bottom plate.The bottom plate can be cooling by circled water and the mold block can be cooling by the fan air.

The other is the high speed type,all the module block been arranged on the track of the forming machine, there are driven by the up and down double gears to run in a high speed.The module can be cooling by both water and fan air.Efficient cooling ensures the module  block cooling down quickly, so it is easy to get good quality of the single wall corrugated pipe in high speed production.

Based on the tube type requirements of the corrugated pipes, we have developed a vacuum forming system to ensure the production of various shaped pipes.Our single wall corrugated pipe machines can produce fixed length inlet pipes and drains for washing machines, and can produce shrinkable pipes with joints ,round and flat  prestressed  plastic corrugated pipes,etc.

1.Water cooling under template, wind cooling on machine two sides.Two types cooling method to guarantee

Production speed

2.Vacuum forming to guarantee good product quality.

4,Mould block:We have professional mold design technicians,mold processing machines,machining center machines.We can design and process kinds of corrugated pipe module block,corrugated pipe joint module blocks,letter engraving module blocks and other types corrugated pipe block for any kinds of corrugated pipe according customer's requirements.All the module blocks are specialized grinding apparatus steel,which is of high hardness and strong wear resistance.

We have been committed to the research, continuous development and innovation of corrugated pipe production equipment.We can  design and make the production lines according to customer requirements.Such as the corrugated pipe outer layer with coating production line,the corrugated pipe with steel line pass through device.

5,Automatic double position winderWe can provide the whole line for corrugated pipe making machine.Such as ,the automatic corrugated pipe winding machine which adopt polishing rod wire traverse for winding displacement.The automatic cutting machine is  a  special cuter for the car harness single wall corrugated pipes.The automatic tapping machine is special used for car harness and electrical wire protective conduit.The automatic shrinkable device for the single wall corrugated drain pipe.

We provide dies, heater,thermocouple, high temperature plug ,guiders,  and other related necessary tools of very high quality and long time usable for producing of different types of single wall corrugated pipes.Machine operation related tools (complete set) for opening and closing of extruder screw, head & other related parts will have to be supplied along with Single wall corrugated pipe production machine We produce and manufacture good quality Single wall corrugated pipe production machine
