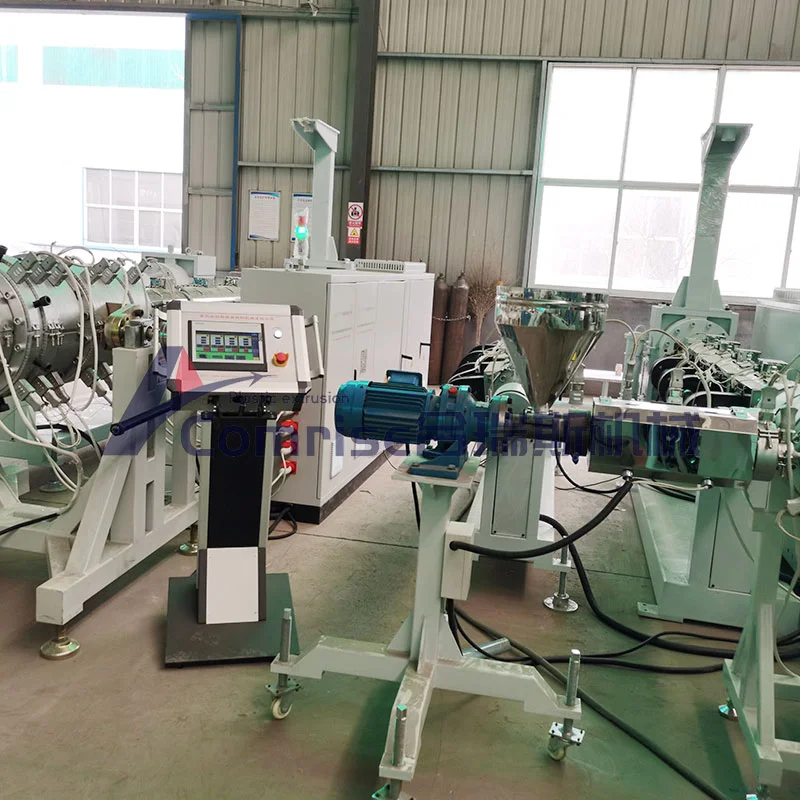

ABC Three Layer Co Extrusion HDPE Pipe Production Line is real high speed and high output machine with newest design and famous electric brands for producing pp pe pipe for sizes from 110mm upto 315mm. ABC Three Layer Co Extrusion HDPE Pipe Production Line composite of SJ75/38 high efficency screw extruder, co extruder, high torque reducer motor, precision molds, two section vacuum water tank, haul off machine and cutting machine. For this ABC Three Layer Co Extrusion HDPE Pipe Production Line maximum output can reach 600kgs per hour.
NO. |
Description |
Quantity |
1 |
Automatic feeding system with hopper dryer |
1 set |
2 |
GSJ 75 / 38 single screw extruder |
1 set |
3 |
GSJ 65 / 33 single screw extruder for co-extrusion |
1 set |
4 |
SJ25/25 color marking machine |
1 set |
5 |
Co extrusion die mold (including heating ring, fixed diameter sleeve) |
1 set |
6 |
Vacuum box (9 m) |
1 set |
7 |
Spray box (6 m) |
2sets |
8 |
Tractor (four paws) |
1 set |
9 |
No dust cutting machine |
1 set |
10 |
AutoStacker |
1 set |
11 |
SIEMENS PLC Control system |
1 set |
Model |
Pipe Dia |
Extruder Model |
Motor Power |
Max.output/h |
HSPE-63 |
20-63 |
HSH60/38 |
90 |
450 |
HSPE-110 |
20-110 |
HSH60/38 |
110 |
500 |
HSPE-160 |
40-160 |
HSH60/38 |
110 |
500 |
HSPE-250 |
50-250 |
HSH75/38 |
160 |
680 |
HSPE-400 |
160-400 |
HSH90/38 |
250 |
1000 |
HSPE-630 |
280-630 |
HSH90/38 |
280 |
1100 |
HSPE-800 |
315-800 |
HSH120/38 |
315 |
1300 |
HSPE-1200 |
500-1200 |
HSH120/38 |
355 |
1400 |
HSPE-1600 |
1000-1600 |
HSH90/38&HSH90/38 |
250+250 |
2000 |
HSPE-2000 |
1000-2000 |
HSH90/38&HSH90/38 |
280+280 |
2200 |
CONTACT US
sales@qdcomrise.com
whatsapp/wechat:+86 13780696467

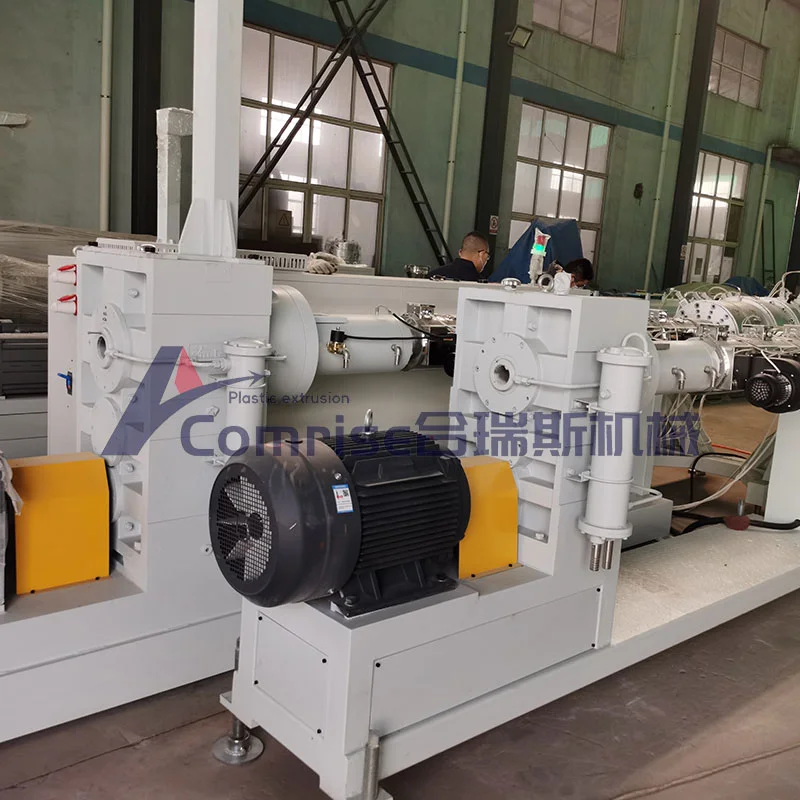

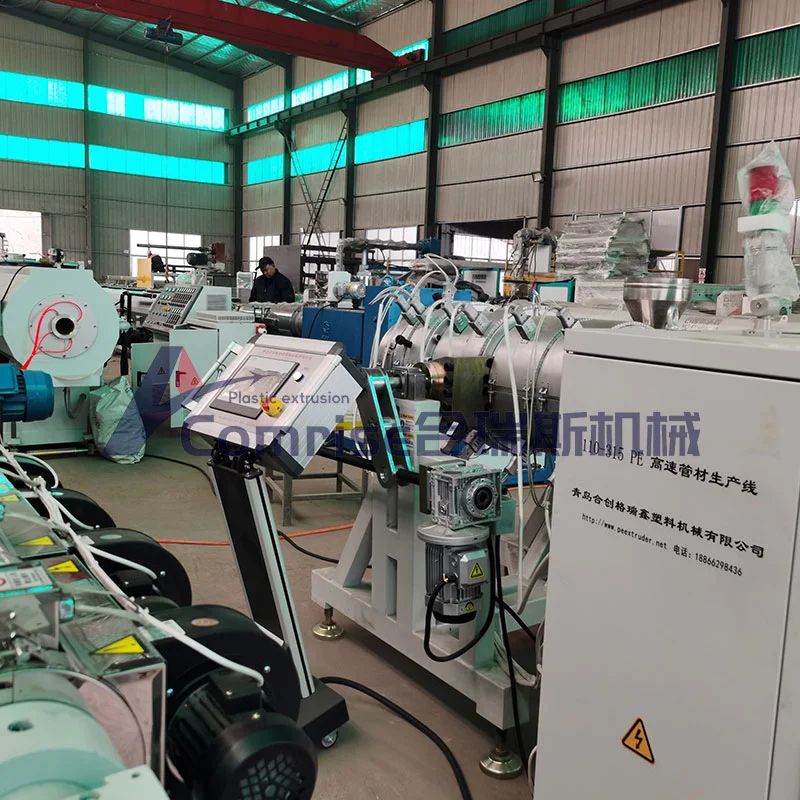

SJ75/38 High efficiency single screw extruder
Srew adopt alloy screw, the inner surface of the screw and barrel is processed with nitriding, alloy spraying, Xinhengli energy-saving motor 160kw, Guomao high-torque reducer, vertical hard-tooth surface reduction box , and the gear box is strengthened by spiral reduction and grinding surface gear. Level braking, the control system adopts Schneider inverter (or equivalent brand),Siemens low voltage electrical components.
Siemens contactor,customer can choose Meter weight control, Siemens PLC control system or OMRON digital control system
OMRON digital control
SIEMENS PLC control
The running time of the entire PE pipe production line equipment is programmed by PLC, and is equipped with a good human-machine interface. All process parameters can be set and displayed through the touch screen.
Schneider inverter
Siemens contactor
Gravimetric weight meter control by PLC
Energy-saving ceramic heating ring and Cooling fans

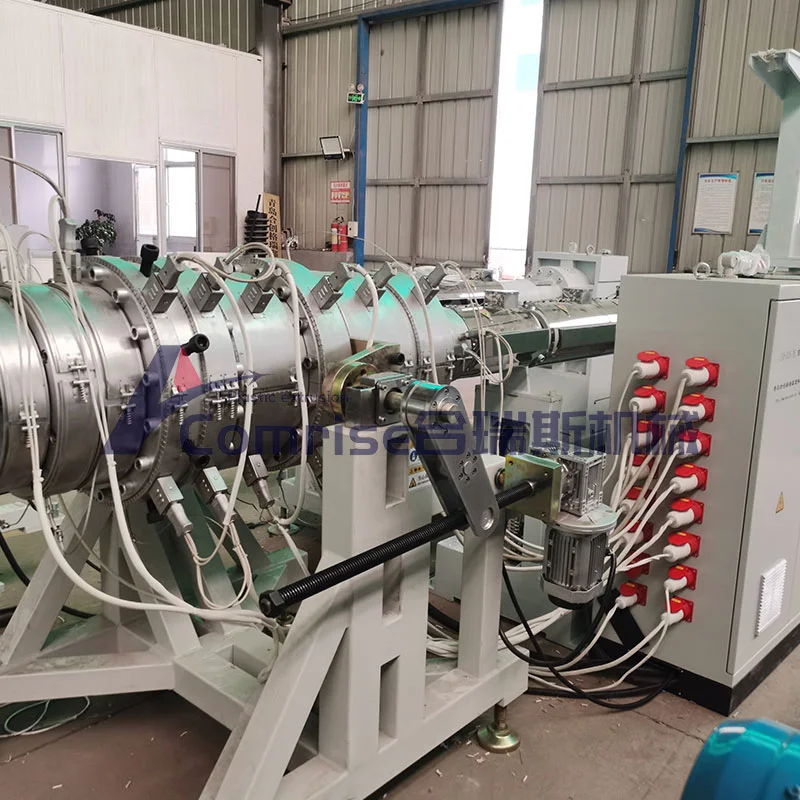

Pipe extrusion Die head mold
Spiral replaceable die head molds with core and bars sizes:φ110
160mm,200mm,225mm,250mm,315mm
The blue die head designed for HDPE pipes has the characteristics of low melt temperature, good mixing performance, low mold cavity pressure and stable production.

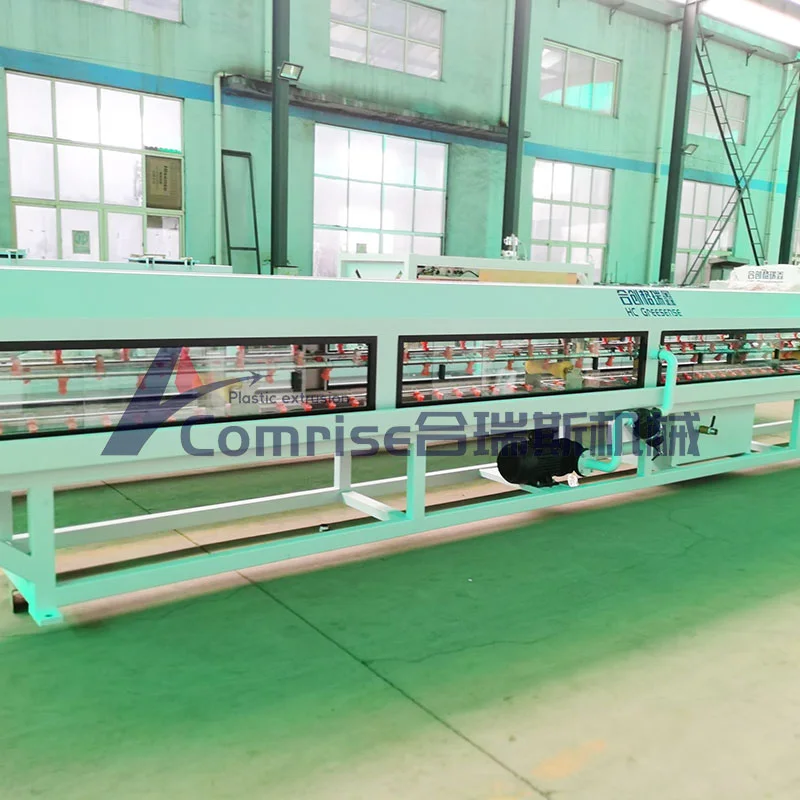

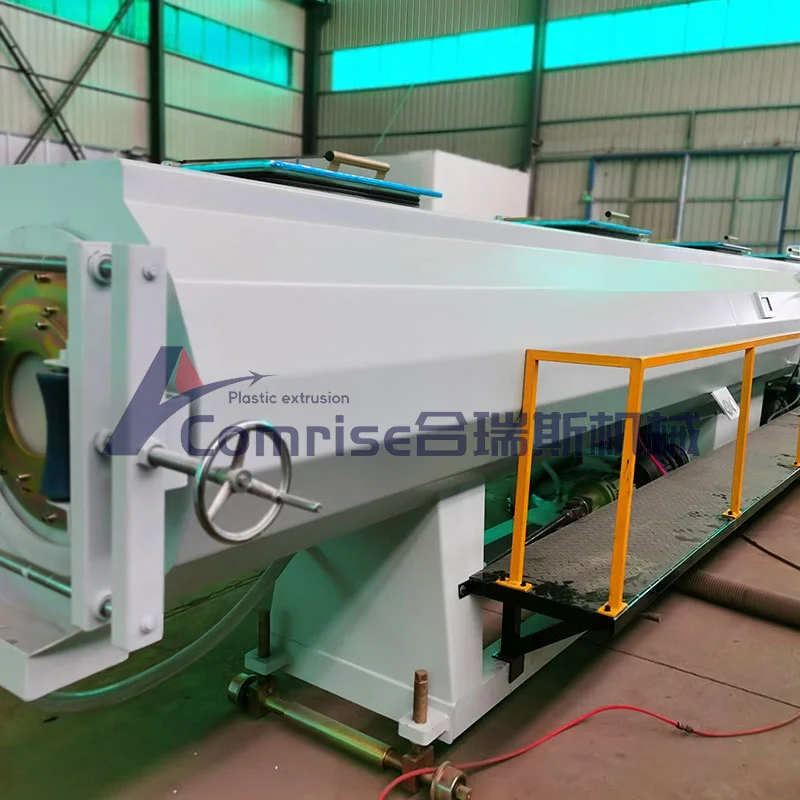

Vacuum water tank 9meters
Two section vacuum, with two sets of vacuum pumps , two sets of water pump, which ensure the dimensional stability and roundness of HDPE pipes, tank material: 4mm thickness stainless steel
―― vacuum pump 4+5.5KW, 2 sets
―― water pump 4+5.5KW, 2 sets
Combined with water temperature control, automatic drainage, automatic water replenishment

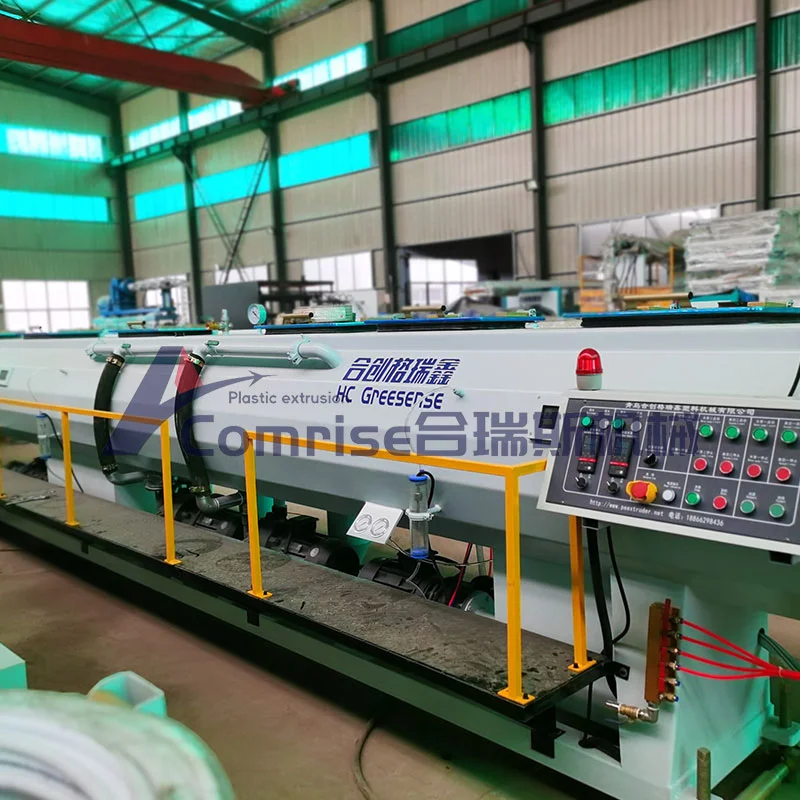

Spraying water tank 6meters
Two claws pe pipe tractor machine
The pe pipe tractor is driven and controlled by an imported speed regulator, which has good stability, high precision and high reliability.

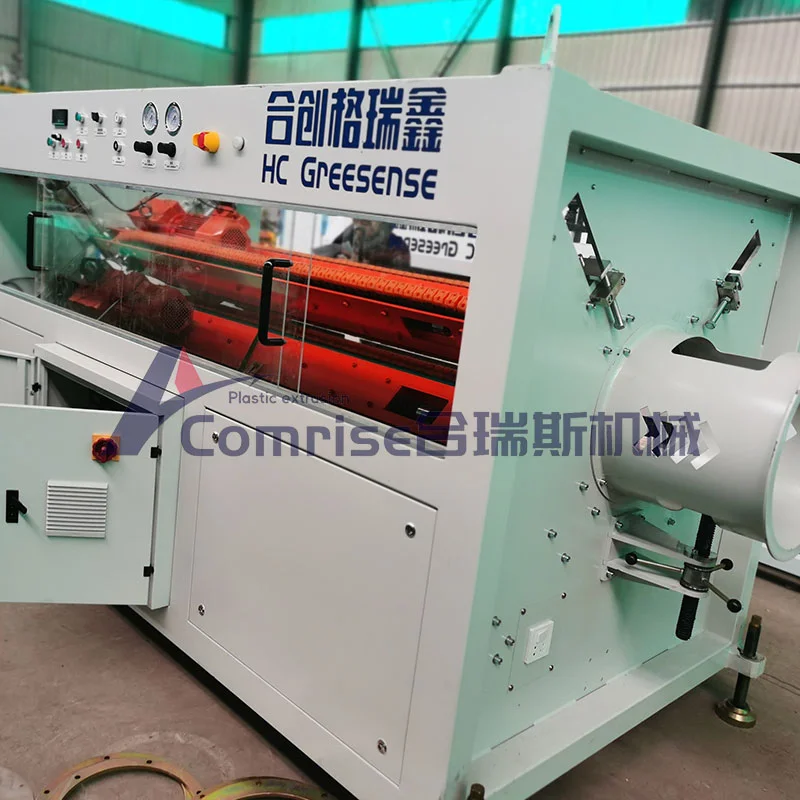

Chipless cutting machine
- -Table movement mode Synchronous follow-up, and pneumatic reset
- -Cutting range Ø 110-315mm
- -The revolution, the motor power 2.2KW
- -Method of entering the knife Mechanical wire rod, stable without injury knife
- -Machinery, the knife-in motor 0.75 KW
- -Motor speed regulation ABB frequency control
Automatic flip rack
ABC Three Layer Co Extrusion HDPE Pipe Production Line with auxiliary parts for vacuum pumps, water pumps, tractor V type block to make pipe round shape, and cutter details.
manufacture new technology high speed ABC Three Layer Co Extrusion HDPE Pipe Production Line, MPP electric pipe production line, pe water supply pipe machine, pe pipe extrusion machine has reliable performance and high production efficiency. The finished pipes are mainly used in agricultural water supply and drainage, building water supply and drainage, cable laying, etc.
The ABC Three Layer Co Extrusion HDPE Pipe Production Line is including high efficiency single screw extruder, vacuum sizing water tank, tractor, cutting machine, and pipe bracket.
The ABC Three Layer Co Extrusion HDPE Pipe Production Line with high efficency single screw extruder, pipe tractor adopt imported frequency conversion speed control device, and the vacuum pump and traction motor are all made of high-quality brands. The traction machine has two claws, three claws, four claws, six claws, eight claws, ten claws, twelve claws according detail pipe diameters. The cutting machine can choose chipless cutting, saw blade cutting or planetary cutting etc. The planetary cutting machine adopts fully automatic computer numerical control, which has the advantages of convenient operation and reliable performance.
We can provide customers valuable technical support to meet different requirements , for example , by replacing some parts to produce inner wall spiral pipes, inner wall hollow pipes and core layer foam pipe, for different material like PP, PE, ABS, PPR, PEX etc.
Comrise machine are a new generation father-son plastic extrusion machine manufacture. Father was the first group of technicians to enter the plastic extrusion industry. Comrise has more than 30 years of experience in the industry, committed to providing quality, custom-made products at competitive prices, we have experienced technical team,after sale service team, ensuring our clients are satisfied with their purchases long. Our main scope business for HDPE gas and water pipe machines, large diameter spiral winding machines, plastic sheet and board machines and recycling solutions.
Q1: Are you manufacture or trading company ?
A1:We are manufacture of machine.
Q1:Question: What advantages of your machine?
A1:Quality 100% assured, famous electric brand, 24h time techincal support, Flexible payment term, Local consult office.
Q2: what’s the company paymet term?
A2: 30% deposit T/T,70%balance before shipment, Letter of Credit, west union , instgram , third party.
Q3: how long will it take to delivery after payment?
A3: Normaly 35-50 days manufacture time depend on certain machines.
Q4: Warranty terms of your machine?
A4: 12 months, starting from the machine receipt in customer's warehouse Free-of-charge of spare parts during warranty period.
Q5: What after sale service will offer ?
A5: Pre-sale communication → Design proposal, signature confirmation→ Customized production→ Test machine before shipment →Package & delivery→ Engineer installation→Training operator → Technical support
