Large diameter PE pipe machine production line

Large diameter PE pipe machine production line has excellent rigidity and flexibility, heat resistance, aging resistance, high mechanical strength, environmental stress cracking resistance, creep deformation resistance, thermal linkage, etc. Therefore, it is the preferred gas and water pipeline system between the city and its suburbs, and large-diameter HDPE pipes are beginning to play a very important role in urban water and gas supply systems.

Process flow of PPR PP PE pipe machine HDPE pipe extruder Plastic pipe rack:

Raw materials+additives → mixing → vacuum feeder → hopper dryer → single screw extruder → color code extruder → mold and calibrator → vacuum forming machine → cooling tank → traction machine → cutting machine → unloading rack

product description

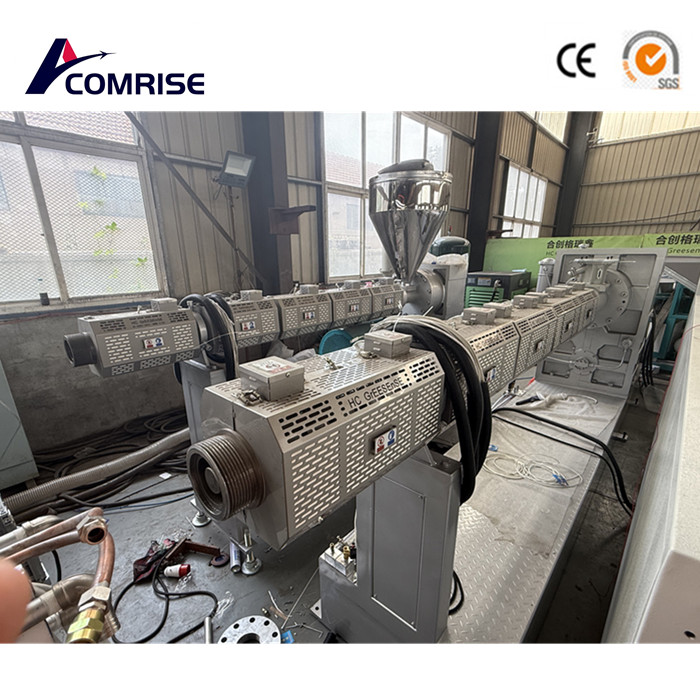

As a Chinese plastic extruder manufacturer, Comrise selects single screw extruders (ventilated or non ventilated) based on different materials. The screw adopts a special mixing function and precise temperature control system to ensure high plasticization, high yield, and stable extrusion of plastics.

PE pipe production machine

Large diameter PE pipe machine production line can be used for HDPE large-diameter gas and PPR water pipes, with excellent rigidity and flexibility, heat resistance, aging resistance, high mechanical strength, environmental stress cracking resistance, creep resistance, thermal connection, etc. Therefore, PE HDPE pipe machine is the preferred gas and water pipe for pipeline systems between cities and suburbs, and large-diameter HDPE pipes are beginning to play a very important role in urban gas supply systems

 Features:

1. New type screw with L/D 38:1. Capacity has been increased largely

2.  The complete line adopts advanced PLC control system, realizing synchronization and full-automation

3.  New type high torque gearbox realizes much more stable production

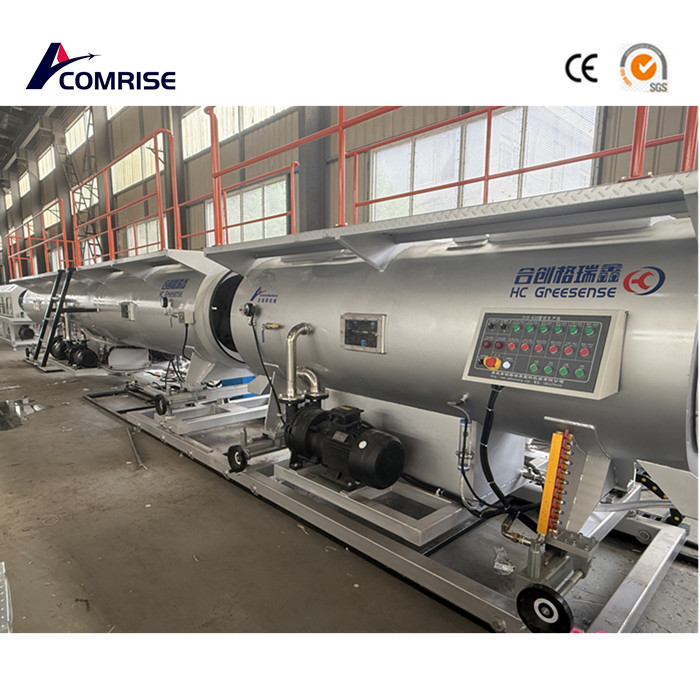

4.  Vacuum calibration tank and cooling tank adopt automatic water temperature and water level control as well as       special independent filters

Qingdao Comrise Plastic Machinery Co.,Ltd is a proffesional manufacturer for plastic extruder machinery production.We could produce various pp pe pvc extruder machine, like plastic pipe extruder, pp meltblow fabric extruder, pp sheet / pp strap extruder etc.

PPR PE pipe production/extrusion line / PPR PE pipe making machinery is used to produce PPR pipes for cold and hot water supply in house. It's composed of vacuum feeding machine, hopper dryer, single screw extruder, mould, make line co-extruder, vacuum calibration and cooling tank, extended spraying cooling tank, haul off machine, printer, cutter and stack bracket.

Main advantages:

1. Barrier type screw, by which the material can get good plasticizing at low temperature but high extrusion output.

2. Barrel with feeding groove, material is 38CrMoAl and nitrogen treated, surface hardness is HRC 65-68, which can has a long use life.

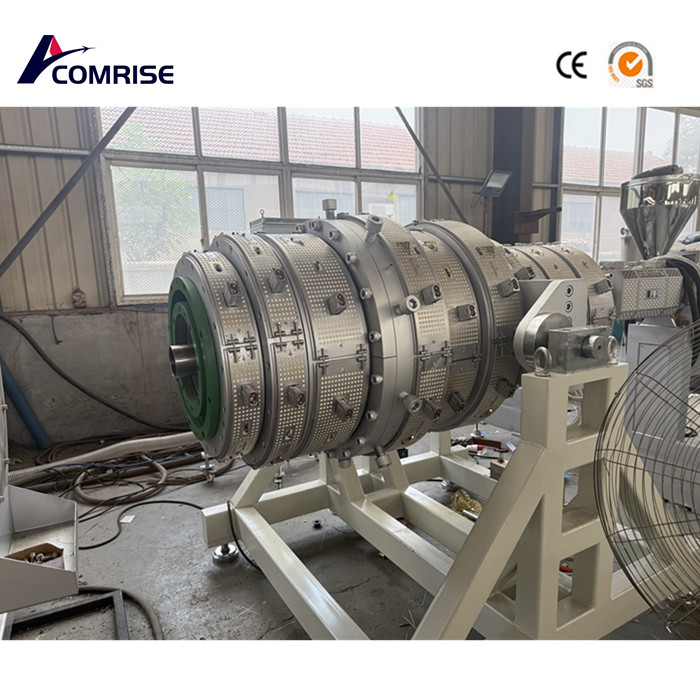

3. Millipore type mould with suitable inner compression ratio which can guarantee to produce high quality PPR PE pipes.

4. High automatic level. The production line is controlled by PLC(touch screen). All parts, like extruder, haul off unit, cutter

etc can be controlled by touch screen synchronously.

parameter
