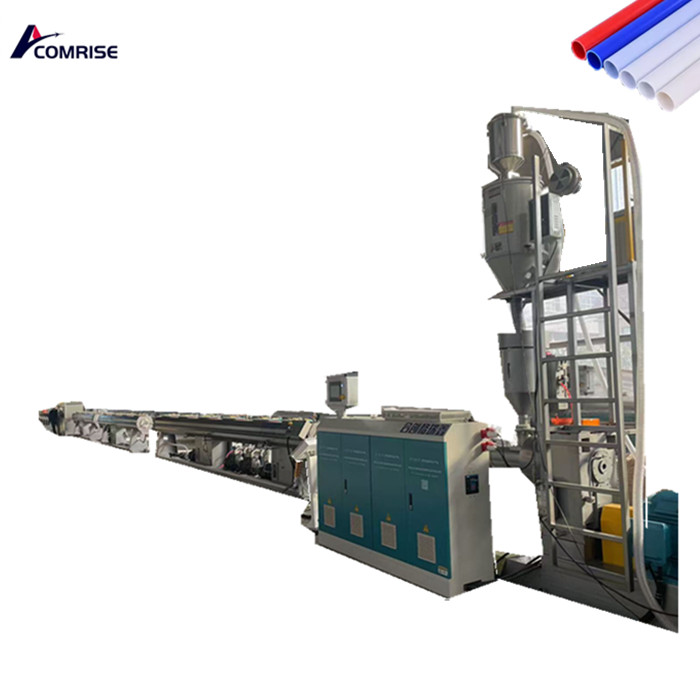

High Speed HDPE Pipe Production Line

According to the various uses of plastic PE pipes, it is required that they have mechanical strength, heat resistance, cold resistance, transparency and other properties at the same time, and it is necessary to constantly introduce new plastic pipes to replace traditional ones. Pe pipes are gradually developing from heavy to light and from single function to multifunctional, and co extruded composite plastic three-layer PE pipes have become a new type of pipe material. Due to the various properties and functions of co extruded tubes that can be designed according to needs, the performance advantages of component materials can be fully utilized by selecting appropriate matrix and steel bars, as well as appropriate composition ratios and arrangement distributions, in order to obtain comprehensive properties such as high specific strength, high specific modulus, corrosion resistance, high temperature resistance, superconductivity, etc. that are difficult to achieve with single materials such as metals, polymers, ceramics, etc. Therefore, it has gradually become the development trend of plastic PE pipes in the future.

Advantage co extrusion

1. Better product performance: Double layer co extrusion technology can extrude and composite two different materials together, fully utilizing the advantages of the two different materials to improve product performance.

2. Simpler production process: Compared with traditional single-layer extrusion technology, double-layer co extrusion technology has a simpler and more energy-efficient production process.

4. Resource saving: Double layer co extrusion technology can simplify the storage and processing of different types of materials, reducing the waste of raw materials.

In summary, double-layer co extrusion technology has become the core technology of modern plastic manufacturing and is widely used in various industries. With the continuous advancement of science and technology, it is believed that double-layer co extrusion technology will have a broader development space

PE pipe extrusion production line flow chart:

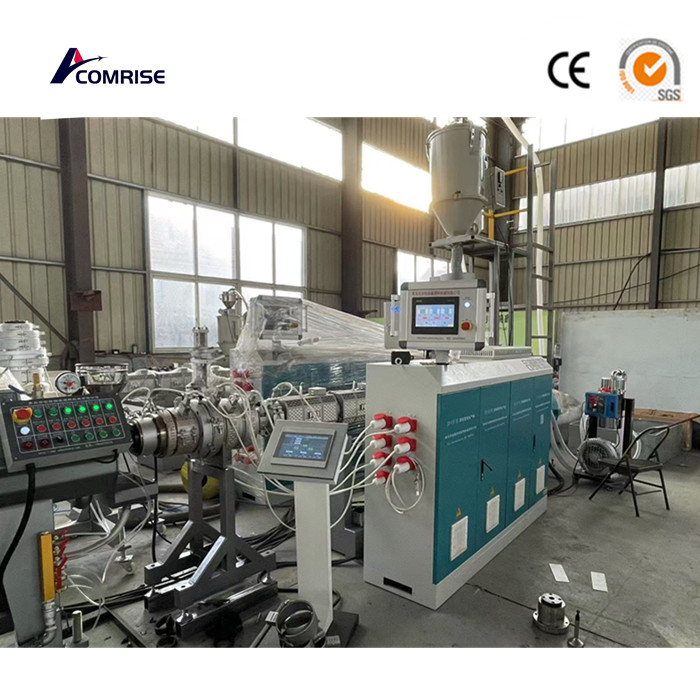

High speed HDPE pipe production line：Raw materials+additives → mixing → vacuum feeder → hopper dryer → single screw extruder → ribbon extruder → mold and calibrator → vacuum calibrator → cooling tank → traction machine → cutting machine → stacker crane (winding machine)

Application description of polyethylene pipe extrusion production line:

This extrusion production line can be used for the production of PE pipes of different diameters, with excellent rigidity and flexibility, heat resistance, aging resistance, high mechanical strength, environmental stress cracking resistance, creep deformation resistance, thermal connection, and so on. Therefore, this pipeline production line is the preferred choice for gas, water, and agricultural irrigation pipeline systems between urban and rural areas.

Characteristics of Polyethylene Pipe Extrusion Production Line:

Capacity: Single screw extruder, suitable for processing high-capacity PE resin, with a maximum capacity of 1000 kg/h. Diameter: from 16 to 800 mm. Adopting reasonable design and absorbing safe production technology, it has obtained CE and ISO certificat
