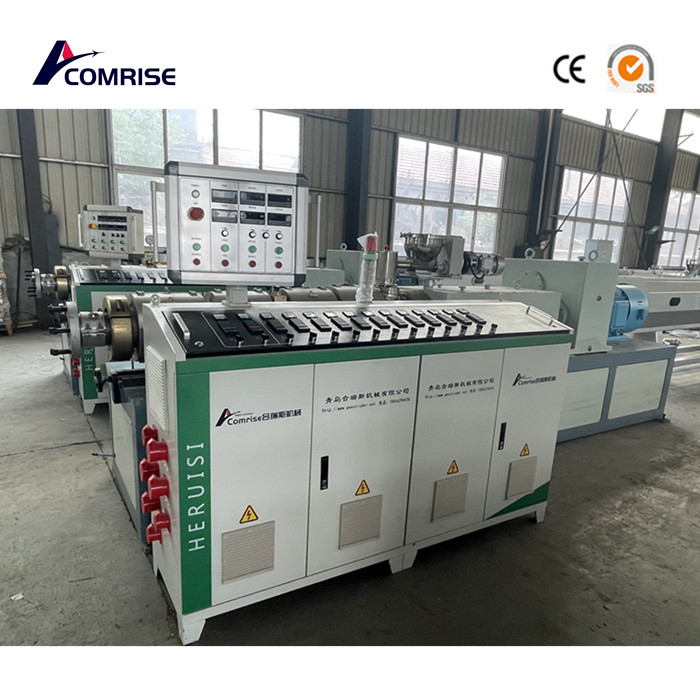

The PVC pipe production line is currently in operation

The drawing machine includes two-claw type, three-claw type, four-claw type, six-claw type, eight-claw type, etc.

Saw cutting or planet cutting can be applied, it is additionally applied with length measuring meter and thickness increasing device, the property of machine group is reliable, the production efficiency is high.

With special device, it can produce inner wall spiral pipe, inner wall hollow pipe, and core layer bulpo pipe, etc, it can also produce PP, PE, ABS, & PPR, PEX, silicon core pipe and pipe material of other material.

The planet-shaped cutting machine is fully automatic computer digital control, it has such advantages of simple operation, reliable property, etc. It has reached world advanced level.

Main features

1. Ensuring long-time stable operation & long service life

2. Compact structure, low noise, high bearing capacity, high transmission efficiency, ensuring long-time stable operation

3. Heating is controlled by Solid State Relay (S.S.R), realizing stable heating; (SSR) no spark & no noise improve safe production.

4. Siemens PLC controlling system with reliable technology, automatic and intelligent functions for centralized control and monitoring extrusion lines, which helps easy operation.

Anxing machinery Plastic pipe machine for water supply electric conduit pipe

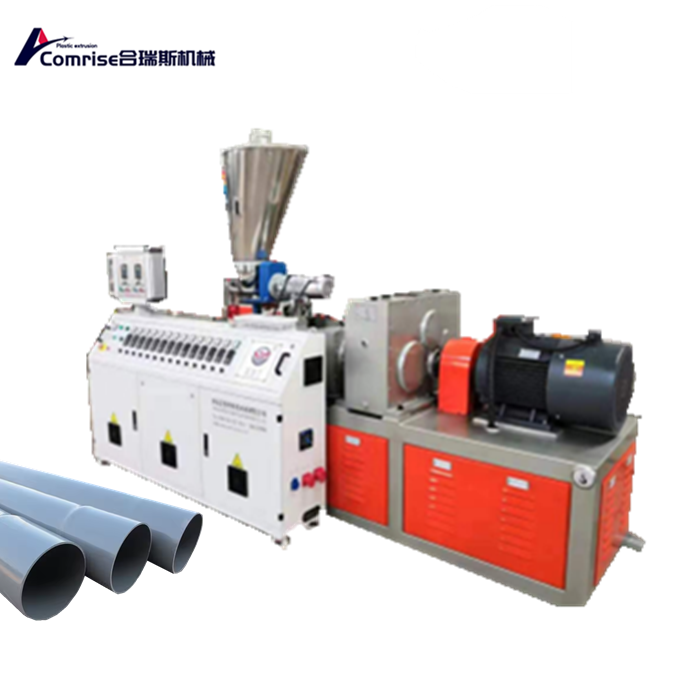

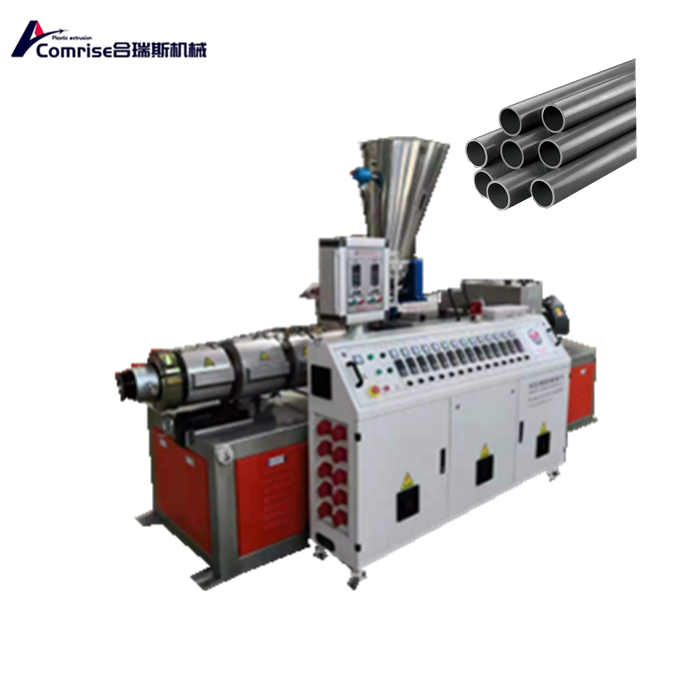

Conical double screw extruder for plastic PVC pipe

PVC pipe making machine has the following features:

1.Extrusion Equipment of  PVC pipe making machine :Double screw extruder takes the new and efficient Screw, and has the higher screw speed, yield and plasticizing capacity...nose or spiral-flow nose, with a uniform material, convenient adjustment to eliminate extrusion fusion line and so on.

2.Vacuum shaping devices of PVC pipe making machine :vacuum spray tank, spray cooling tank or efficient cooling tank, and all water contact parts made of stainless steel material.

3.Traction machine of PVC pipe making machine :two claw-type or rubber belt crawler tractor in order to adapt to different pipe production requirements..

4.Cutting machine of plastic pipe making machine :No dust rotating knife.

5.Stacking devices of PVC pipe making machine :automatic turn plate or roller-type stacking devices, small-diameter pipe can be configured duplex winder according to customer requirements duplex winder.

6.Electrical control system for a variety of options (eg: PLC automatic control system),good production speed, stability, and the  control system is simple and easy to operate.

6meter vacuum and cooling calibration table

2 claw /3 claw customized haul-off machine

planetary cutter for plastic pipe machine

If you have any inquiry about plastic pipe project, welcome to contact us

Transform raw materials into high-quality PVC pipes seamlessly with our advanced PVC Pipe Production Line. Designed for durability, speed, and unmatched consistency, our system empowers manufacturers to meet growing demands in construction, agriculture, irrigation, and infrastructure projects worldwide.

Applications of PVC pipe

Construction: Drainage, sewerage, and ventilation systems.

Agriculture: Irrigation pipes, greenhouse frameworks.

Utilities: Potable water distribution, electrical conduits.

Industrial: Chemical-resistant piping, cable protection.Core Technologies

---Automated Extrusion System:

Advanced twin-screw extruders ensure precise temperature control and uniform material mixing for flawless pipe wall thickness and structural integrity. Compatible with multiple PVC formulations (UPVC, CPVC, and recycled materials).

---High-Speed Calibration & Cooling:

Vacuum calibration tanks and precision cooling systems guarantee dimensional accuracy and smooth surface finishes.

Rapid cooling minimizes production cycles while maintaining product quality.

---Smart Control & Monitoring(Optional):

PLC and HMI interfaces enable real-time adjustments to diameter, wall thickness, and production speed.

Automated fault detection reduces downtime and waste.

---Versatile Output:

Produce pipes from Ø16mm to Ø800mm for applications like drainage, potable water, electrical conduits, and industrial piping.
