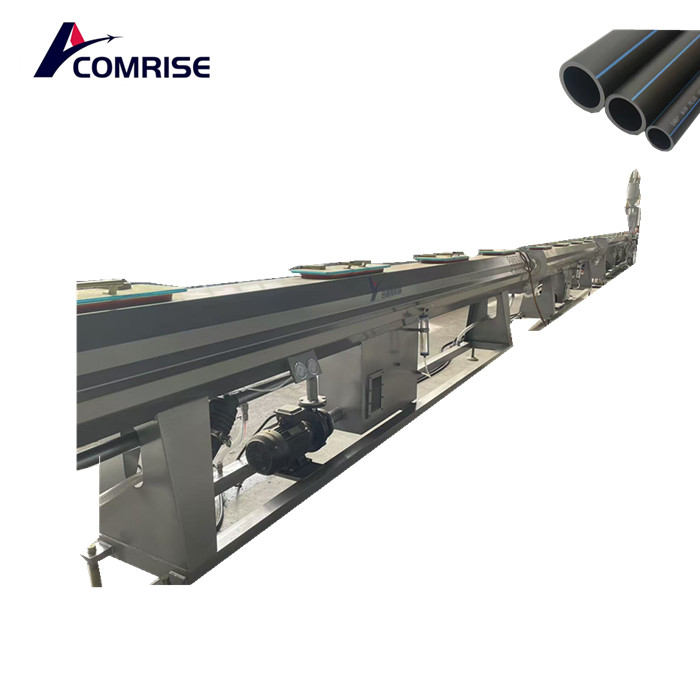

Assembly of 250mm PE pipe machine in progress

PP PE single-layer or three-layer pipe making machine

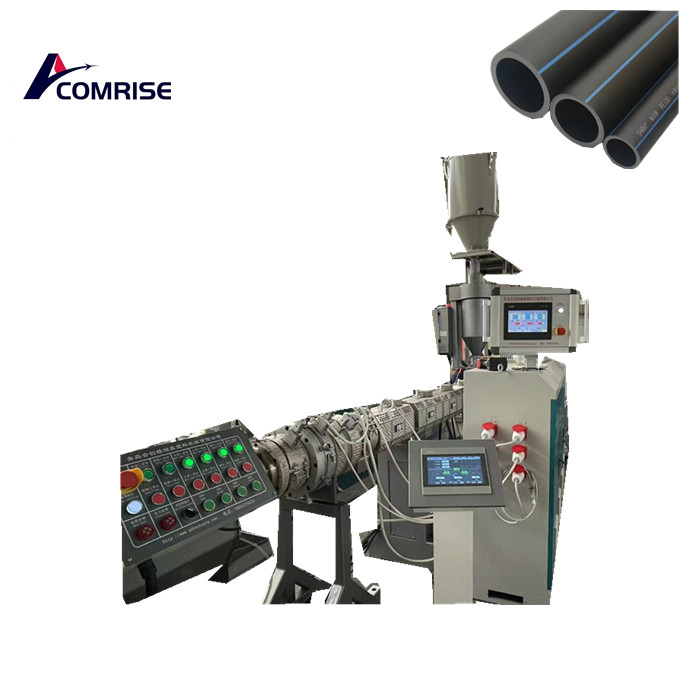

Advantages of high-efficiency single screw extruder:

This extruder has the following advantages: high plasticization rate, uniform melting, and stable continuous production. High performance gearbox reducer. High torque, long lifespan, and low noise.

132KW servo permanent magnet motor saves 15% of power

Siemens PLC control

Variable frequency control of vacuum sizing box, saving 30-40% electricity

The inner and outer layers are separated by two 65 extruders, which allows for better control of layering. It can also be used for different purposes, such as three layers of different materials or different colors.

PP PE single-layer or three-layer pipe making machine

Advantages of extrusion molds:

High speed molds and shaping sleeves

The inner and outer layers are separated by two 65 extruders, which allows for better control of layering. It can also be used for different purposes, such as three layers of different materials or different colors.

PP PE single-layer or three-layer pipe making machine

Advantages of vacuum water tank:

Automatic pressure control and chiller temperature control

The ordinary water tank controls the vacuum pressure by emptying the air, and the vacuum pump runs at full speed. But the variable frequency control vacuum box does not require full speed. By adjusting the speed of the pump to control the vacuum level, the vacuum level can be made more stable.

The pressure sensor measures the vacuum level in the water tank and adjusts the speed in a timely manner.

Fully automatic adjustment.

The water tank material is 304 stainless steel, with a thickness of 4 millimeters
