20-110mm HDPE pipe successfully running

1. The extruder adopts frequency converter control which has the features of easy adjustment, reliable running, stable working and low energy consumption. It adopts independent electric cabinet and it is easy for the whole machine's centralized control and operation.

2. The screw bolt and barrel of the extruder is made of good quality nitriding steel. The design is reasonable and the plasticizing effect is excellent and it features stable production.

3. Shaping of the pipe adopts center material feeding mold and vacuum sizing. Cooling method is the combination of spraying and leach so the precision of the pipe size is high and the outlook is good.

4. It adopts special-purpose roller type tractor and the pipe will not deform easily due to plasticity.

5. Soft pipe rolling machine adopts torque motor control which overcomes disadvantage of tension. It adopts independent electric cabinet control which is convenient for independent control and operation during production.

6. When producing small diameter pipe change winder to coiler for hard pipe and equip the line with suitable extruding mold, hard pipe can be produced. When producing big diameter pipe, it shall adopt caterpillar type tractor and change winder to pipe rack and equipped with suitable extruding mold and pipe cutting device to produce hard pipe.

Details for HDPE PP PPR pipe machine1. Process flow:

Plastic granules → Vacuum feeding →Single screw extruder → Co-extruder for mark line→ mould → vacuum tank →water cooling tank  → haul off machine → cutting machine → stacker or automatic belling winder machine

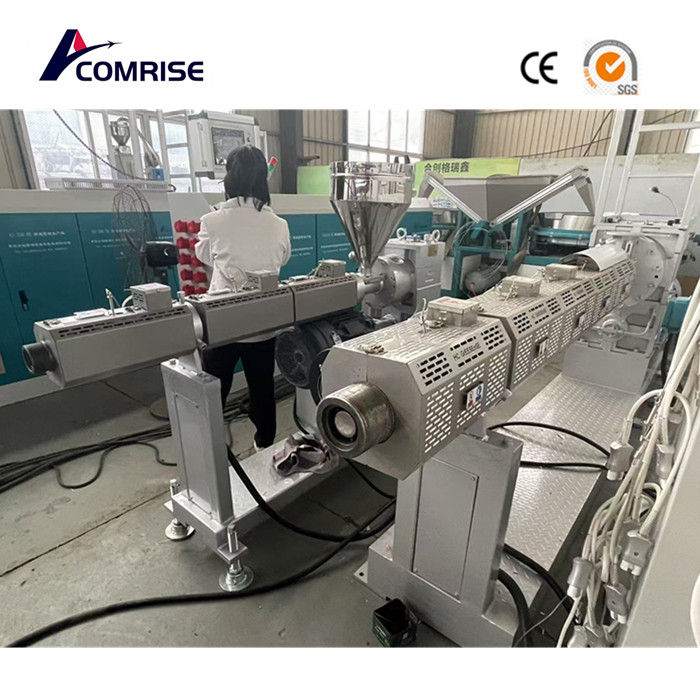

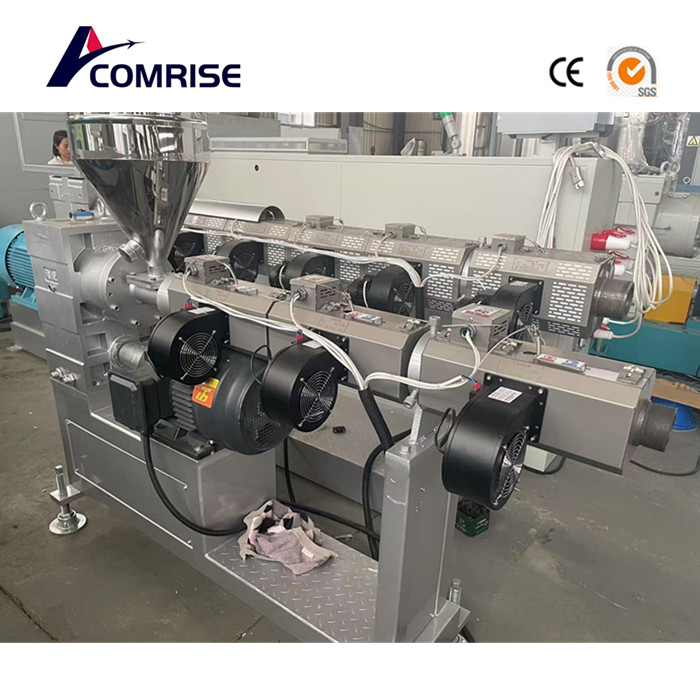

1.Single screw extruder and mark line co-extruder

2.Die head. Due to the diameter, it can be design according customer requirments

3.Vacuum tank and water cooling tank: due to diameter, it can be designing of single, double vacuum chambers

4.Haul-offs: due to diameter, it can be designing of double, three, four, six, eight caterpillars

5.Cutter: due to diameter, it can be designing of saw cutter or planetary cutter

6.Stacker or automatic winder machine

3,Plastic pipe making machine details

1, High effective single screw extruder with PLC control system.it equipped with auto feeding and auto drying system.the co-extruder can make the marking line on the pipe.

2, Professional designed Die head and mold.designed for 1-4 marking lines for Water supplying PE pipe production

3, fast cooling water spraying tank and vacuum cooling tank 4, Strong force haul off machine for stably production, and automatic cutting machine without dust 5, PE pipe automatic stacking device, high quality PE water pipe made by our machine
