Single Wall Corrugated Pipe Production Line

The single wall corrugated pipe machinery developed by our company adopts gear operation modules and templates, thereby achieving circulating water cooling and air cooling of the product, ensuring fast production speed and uniform waveform Uniform,consistent seams, and smooth inner and outer walls.High speed design technology was introduced from Germany, and according to different needs, it has 72 or 80 pairs of molds.

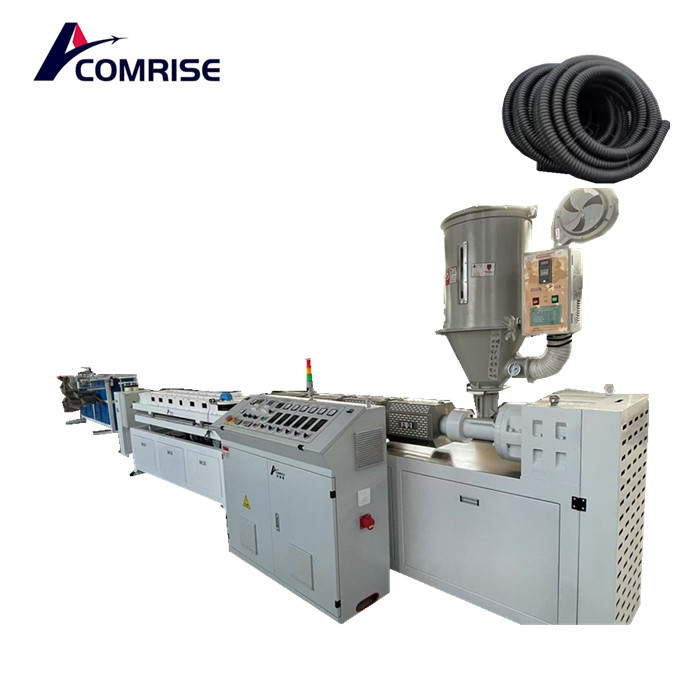

Single wall corrugated pipe production line

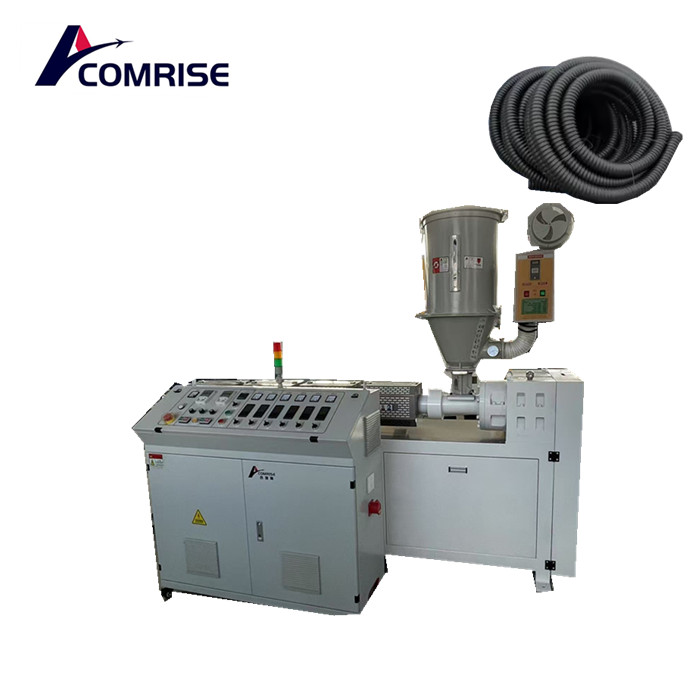

1.ExtruderScrew

Diameter: 45mm

Length to diameter ratio: 30:1

Material: 38CrMoAlA

Surface: nitriding, polishing

Barrel

Material: 38CrMoAlA

Heating power: 8kw

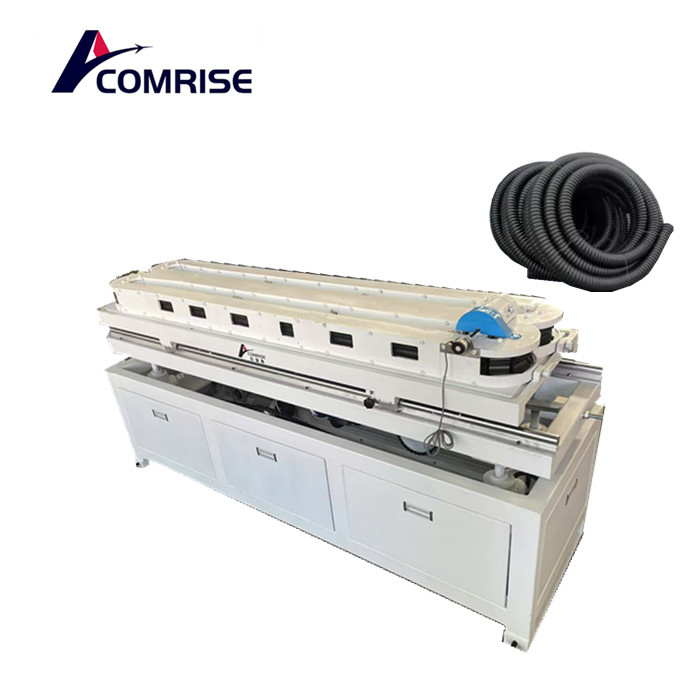

2.High speed forming machine

For the entire board, we use a brand new upgraded material with a hardness of 63.4hrc, corrosion resistance, and longer service life, making the entire machine run more stably, with higher output efficiency and better quality.

Molding machine adjustment: left and right manual control, up and down electric control.

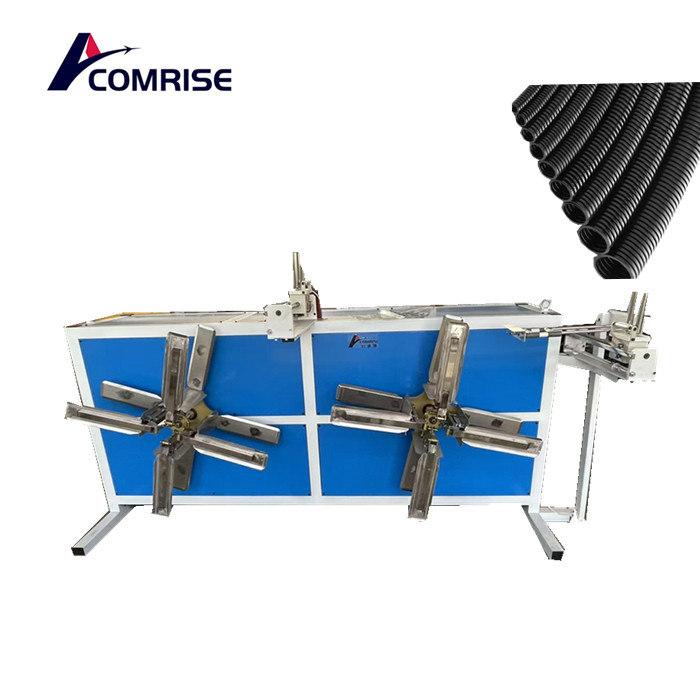

3.Double station winding machine

The automatic winding machine can balance the speed between pipe making and rewinding. When the pipe production is slow, the device will stop rewinding to prevent the pipe from being too tight or disconnected. Its counter can adjust the winding speed through induction, improving the winding efficiency. The wheels added to the machine are easy to move and convenient to operate.
