PP Hollow Grid Board Production Line

Introduction to Hollow Board Production Line:

The Qingdao Comrise factory PP hollow board production line is mainly used for PP hollow boards. It consists of cutting device, conveyor, material rack, etc.

The PP hollow board produced by the PP hollow board production line can be processed into turnover boxes, packaging boxes, partitions, liners, backboards, bottom supports, etc. It is widely used in fields such as electronics, home appliances, luggage, machinery, postal services, food, advertising decoration, etc.We are china top machine supplier

Equipment advantages:

The PP Hollow Grid Board Production Line produced by our company's equipment is made of lightweight material, high strength, moisture-proof, smooth surface, good environmental performance, and has secondary processing performance.PP Hollow Grid Board Production Line, PP grid board can be processed into turnover boxes, packaging boxes, partitions, linings, pads, bottom supports, etc. It is widely used in industries such as electronics, home appliances, luggage, machinery, postal services, food, medicine, and advertising decoration.

application

1. Industrial product packaging turnover rate: electronic component packaging boxes, plastic parts turnover boxes, knife card separation cans, anti-static turnover boxes, conductive hollow board turnover boxes; Turnover box, conductive hollow board turnover box.

2. Luggage tote tray: padded bag, luggage board, partition.

3. Bottle industry: flat glass factory, bottle rack, can product separator, can care, sheet metal.

4. Mechanical industry: Machine pads.

5. Advertising industry: PP hollow board display boxes, display racks, billboards, corona plates.

6. Home decoration: ceiling, grille, bathroom partition

7. Furniture industry: coffee table boards, furniture boards.

8. Agriculture: various types of fruit and vegetable boxes, pesticide containers, food packaging, beverage containers; Greenhouse roof.

9. Sports equipment: smart blackboard, paper bag.

10. Automotive industry: steering wheel panel, rear partition.

11. Electrical industry: refrigerator, washing machine backboards, partitions.

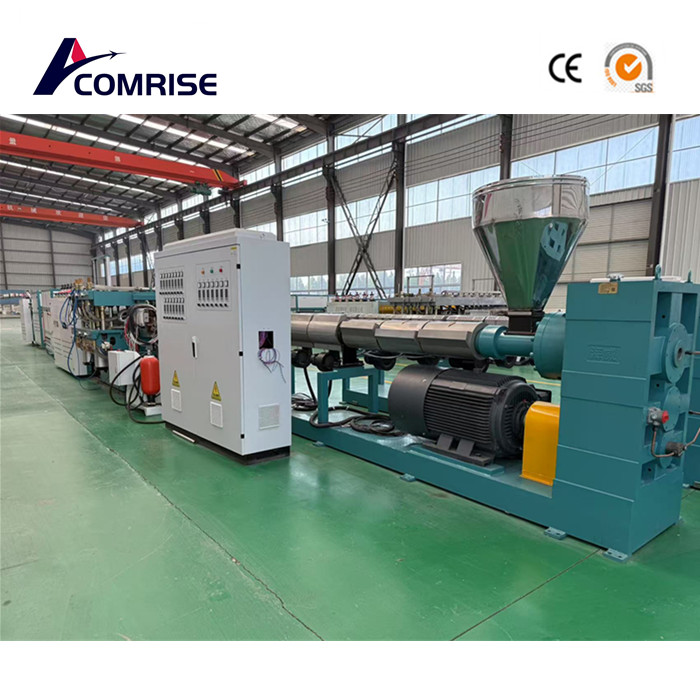

PP Hollow Grid Board Production Line Extruder: The screw is specially designed for easy cleaning and can be replaced when needed. The advanced PLC screen control temperature control system ensures good plasticity of the plastic and stable extrusion with high output

Screen changer: A hydraulic quick screen changer device enables the screen changing process to be fast and efficient.

Mold: The mold is made of high-quality alloy steel and equipped with high activity throttling, so the pressure of the raw material flow inside the mold is uniform and even; The differential adjustment of the upper and lower molds ensures uniform thickness of the upper and lower walls.We are china good supplier

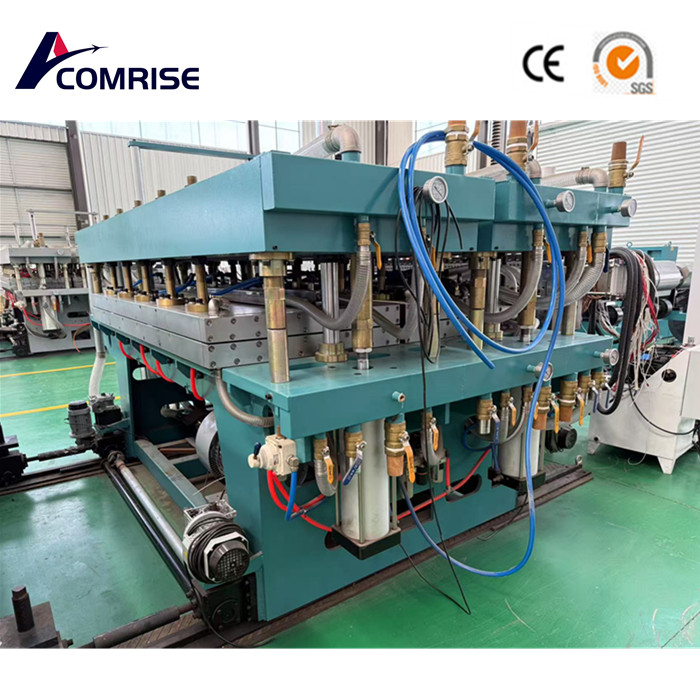

Vacuum forming system: The system is equipped with a rapid heat exchange refrigeration system, which is effectively integrated with the vacuum system and sequential heat distribution. This allocation ensures the accuracy of the settings. The vacuum system consists of two independent subsystems, each equipped with multiple fixed cycle vacuum pipelines. Each fixed cycle is equipped with a vacuum regulation system and a vacuum display system to ensure uniform and stable vacuum pressure levels on the board surface.

Tractor: There are first and second sets of tractors. The first group of tractors has a large capacity, high reduction ratio, and multi roller design. It operates efficiently at low speeds, has high tensile strength, and can synchronously and uniformly remove the sheet from the vacuum profiler.

The second group of tractors has been processed to reduce the load on the first system. It is also equipped with trimming devices to ensure the effective width of the board and the quality of the board edges. The second group of tractors can be regarded as sub adjusters of the board width.

Thermoforming machine (auxiliary): Advanced wide area thermal conductivity heating method can effectively eliminate the stress of the sheet and further improve the flatness of the sheet.

Cutting machine: equipped with automatic lifting and instant precise fixed length support device, the edge of the cutting blade is made of wear-resistant special alloy to ensure the quality of the cutting surface of the board.professional manufacture
