110-315mm PE pipe production line ready to complete

The complete set production line includes below machines:

1. Color Mixer ( for raw material preparation)

2. Single Screw Extruder

3. Extrusion Mold

4. Vacuum Tank

5. Cooling Tank

6. Haul Off Machine

7. Cutting Machine

8. Stacker ( for 125mm up to 1200mm)

9. Winding Machine ( for pipe diameter 16-63mm and 75-125mm)

Extruders: Plastic Single-screw extruders for HDPE/PP, optinal SJ45, SJ55, SJ65,SJ75, SJ90,SJ100,SJ120,SJ150, L/D 33:1 or 38:1.

Extrusion capacity from 40kg/h to 1500kg/h.

High efficiency extruder is designed for HDPE pipe, equipped with reducer which is high speed and low noise, feeding section with cooling unit and reversing spiral groove, different pitch undulant screw which allows great output, lower melting temperature, and lower energy consumption.

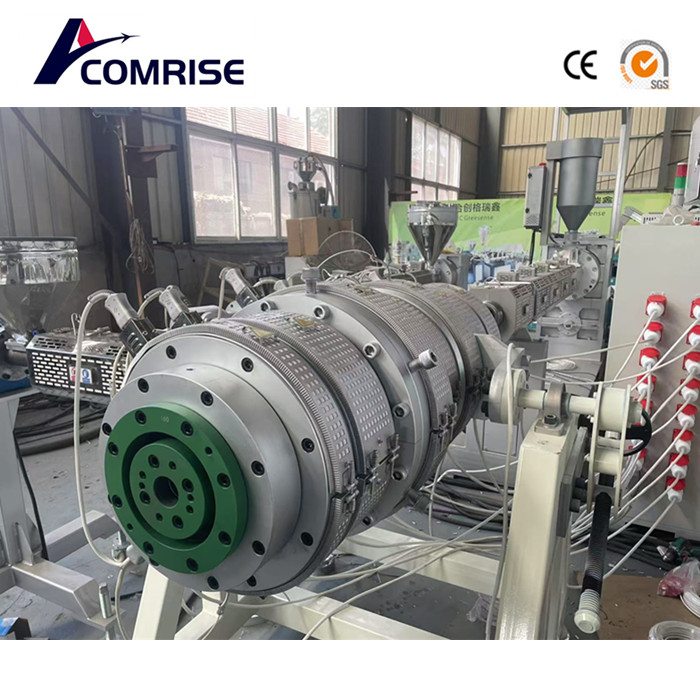

Extrusion die-head

Single layer extrusion die mould, double layers extrusion die moudld, three-layers extrusion molds.

Distributed spiral composite extrusion die-head ensures the melting pressure and flux even and stable, the surface of pipe smooth and glossy.

Vacuum calibration water tanks, and spray water cooling tank: made of stainless steel ensures precise calibration and fast cooling.

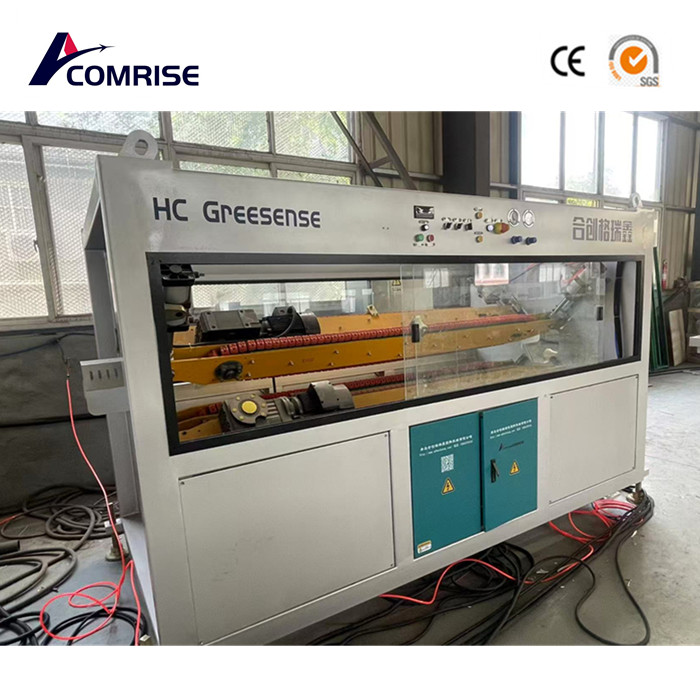

Multi claws haul-off unit

speed adjusted by frequency inverter or by servo-motors. Be able to cut large diameter and thick wall pipe, servo-motors

Haulling speed: 0-30m/min.

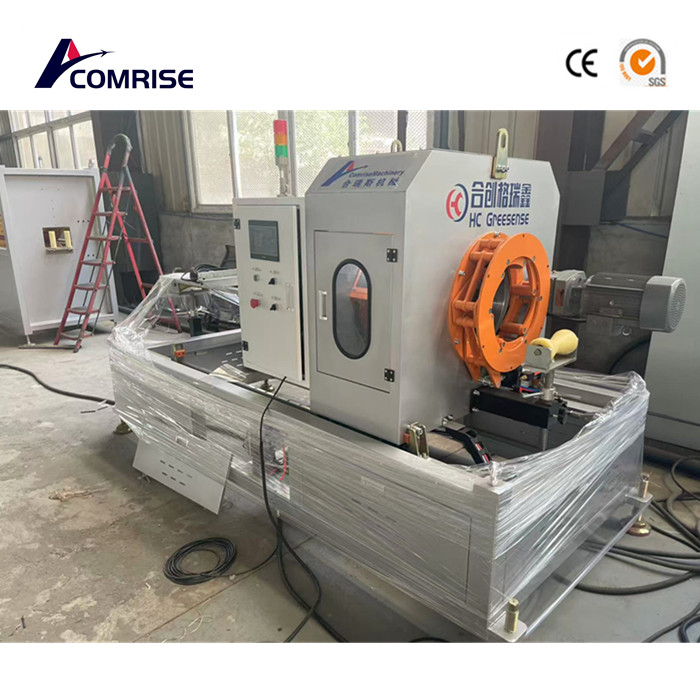

Cutting machine

1.No-dust Cutter:The chip-free cutting machine can keep the production environment clean and noiseless. The incision is smooth and neat, which improves the appearance quality of the pipe.

2.Planetary Cutter:Planetary cutting machine with special hard fit blade, suitable for large diameter thick wall pipe cutting
