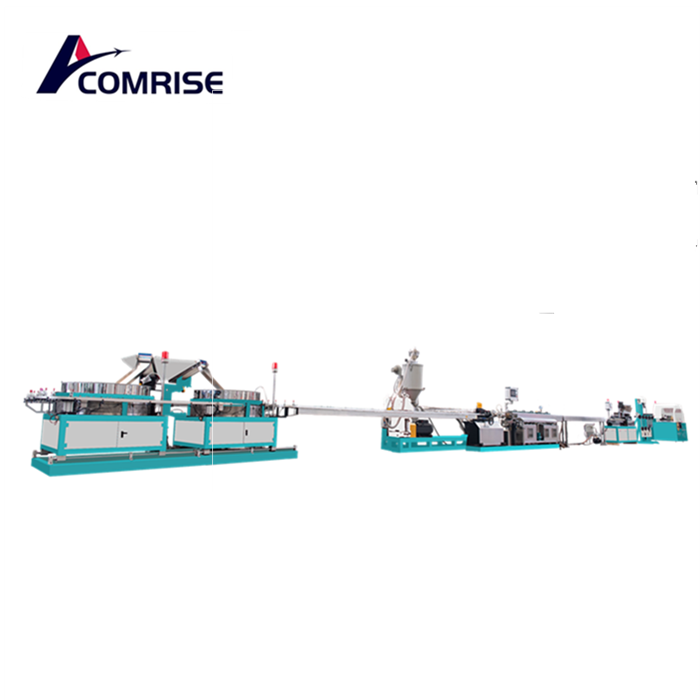

What is a drip irrigation pipe production line

Main components:

Droplet automatic screening, drip device, drip tape extrusion equipment, drip embedding, cooling equipment, punching equipment, traction equipment, winding equipment, packaging equipment, packaging equipment

The dropper is a disposable injection molded product with a wide and long flow channel, built-in filtering window, and good blocking performance; The uniformity of the effluent is very good, and it is directly welded onto the inner wall of the drip pipe, losing pressure loss. It is very small and can save water. Our equipment can produce drip irrigation pipes of different specifications suitable for different irrigation conditions, and can adjust the distance between droplets according to the needs of different crops to meet the needs of different customers.

final product

(1) Drip irrigation tape is the core of drip irrigation system. Suitable for planting crops in fields, greenhouses, and greenhouses. It can save water and fertilizer, and improve economic benefits.

(2) Currently, drip irrigation is the most commonly used water-saving irrigation method in arid and water scarce areas. Drip irrigation technology can achieve a water utilization rate of 95%.

(3) Drip irrigation tape is widely used in areas with water scarcity. Water conservation and grain production increase are important measures to improve the yield of grain crops, and drip irrigation technology plays an important role in grain production.

(4) The working principle of drip irrigation technology is to use a low-pressure pipeline system to directly transport water to the field, and then evenly and slowly drip water into the soil near the root zone of crops through nozzles, holes or drip irrigation belts installed on capillaries, so that the soil in the most developed areas of crop roots can maintain appropriate humidity regularly, creating favorable conditions for high and stable crop production through soil moisture, fertilizers, gases, heat and microbial activity.

(5) Drip irrigation water is stabilized, filtered, and fertilized through the first filtration system, then passes through the main and branch pipes, and finally drips onto the roots of plants through drip irrigation belts. In short, drip irrigation is suitable for crops in water scarce areas.

1. Control system

The advanced Siemens PCC control system is applied to this Flat drip irrigation belt production line. The intelligent functions of the system, such as full line synchronous control, have no deviation. One click speed increase or decrease control, high-precision temperature control, etc., ensure reliable and convenient operation of the production line.

2. Gravity meter system

The planar drip irrigation belt line adopts a high-precision control system for the weight of each meter of pipe material. This device will accurately feed according to the weight per meter and changes in line speed; Accurately control the weight of the produced pipes. It can shorten the start-up time and save raw materials.

3. Droplet sorting system

Adopting the most advanced detection technology, such as nanoscale laser recognition devices and droplet anti directional removal devices, to ensure 100% qualification of droplets in production.

Droplet sorting speed: 1100pcs/min

4. Traction machine

The two-stage traction machine of this drip irrigation pipe machine adopts servo control, and the traction speed can be synchronously adjusted according to production requirements, with stable and reliable traction and low noise.

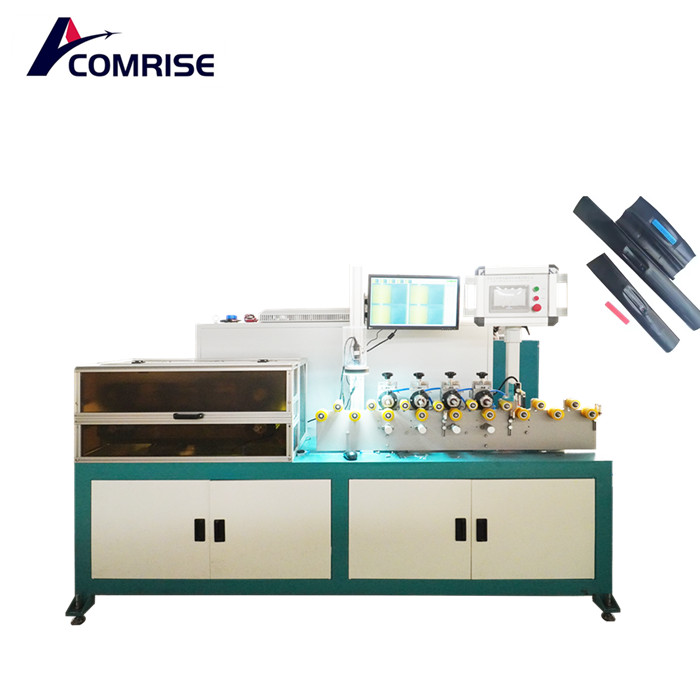

5. Punching machine

The drip irrigation pipe machine is equipped with an online blind hole detection system. Once the system detects unperforated pipes, it will automatically cut off the pipes, switch to the coiling position, and report the waste pipe situation on time.

6. Automatic winding machine

The automatic winding machine is driven by a servo motor and controlled by a Siemens PLC system.

The application of servo lateral movement and tension control system on this flat drip irrigation belt production line can ensure high synchronization conditions between winding speed and line speed, making the wound coils uniform and neat. During the production process, the rewinder can automatically cut pipes and replace drums according to the set length.
