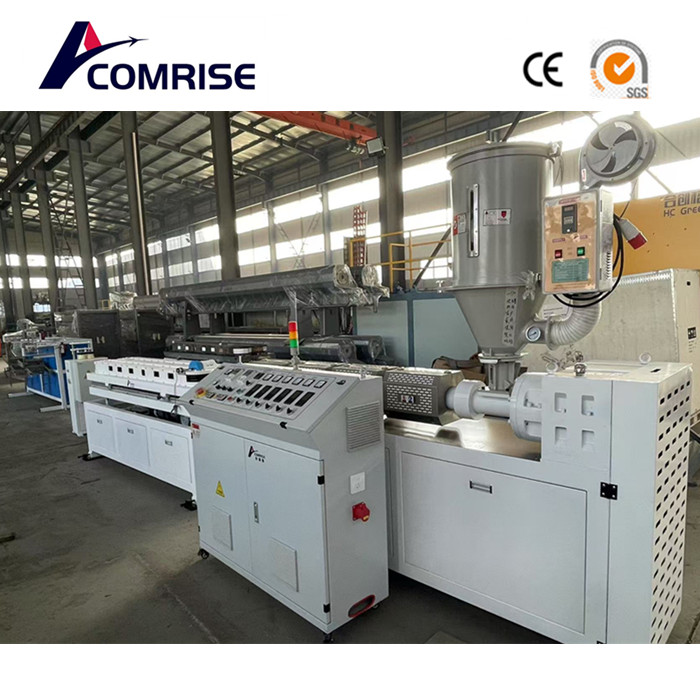

High speed single wall corrugated pipe machine

1. Suitable for extruding PVC, PE, PP, HDPE, LDPE pipes.

2. Raw materials: PP, PE, PVC material.

3. Production speed: 8-25m/min.

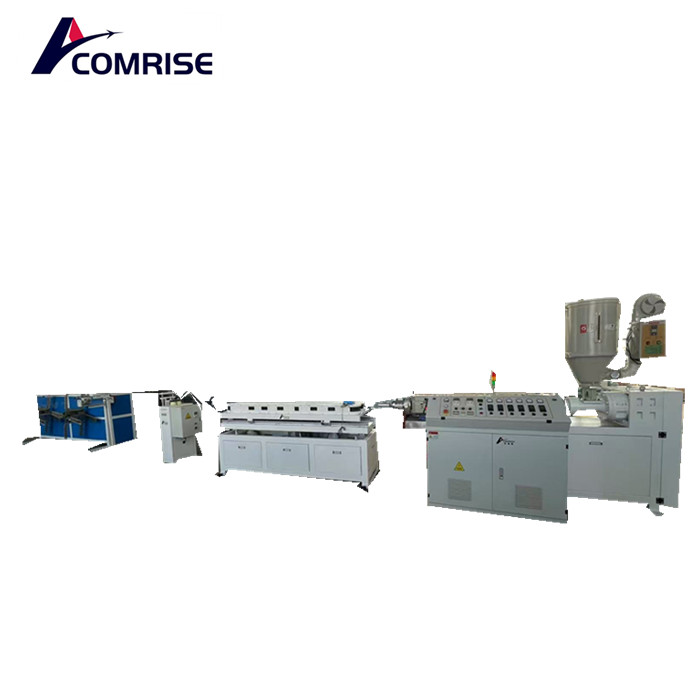

4. Mainly includes: vacuum drying automatic feeder, single screw extruder, die head, core rod and mouth mold, pipe forming machine, and winding machine.

5. Provide technical services, formula guidance, and procurement of main raw materials.

1. The molding machine has a larger cooling area, so the speed will be faster.

2. Using buckles to secure the mold box will make mold replacement faster and easier.

3. Automatic and manual adjustment.

High speed single wall corrugated pipe machine

Detailed information of plastic corrugated pipe machine

1. Automatic feeder with dryer

In order to save manpower and improve work efficiency, each extruder is equipped with an automatic feeder that can be set to automatic feeding or manual feeding. Automatic feeding ensures continuous production and does not cause downtime due to a lack of raw materials. On the other hand, the dryer can keep the material filled and the drying effect will be very good. An automatic material loading facility for the extruder hopper must be included.we are china top factory

Construction and characteristics:

A， The turbo molecular pump will draw in air from the autonomous material casing, keeping the material inlet and the entire system in a vacuum state.

B、 The material is sucked into the hopper together with the external air through the suction pipe.

C、 The material and air will be separated, and the material particles will fall into the hopper in the drying device connected to the extruder.

D、 According to the principle of central ventilation and drying, a device will have to be designed. It will have high heating efficiency and will dry evenly.

E， Two devices will work simultaneously to achieve autonomous conveying and drying.

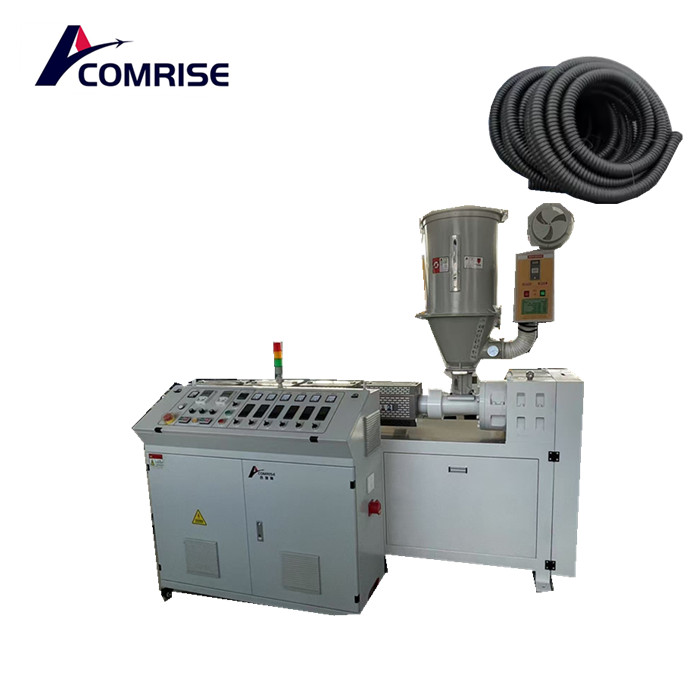

2. Main business: Single screw extruder

The High speed single wall corrugated pipe machine extruder consists of a screw rod, cylinder, reducer, extruder head frame, water and air cooling system, lubrication system, temperature control system, gearbox, etc. All parts are manufactured by well-known manufacturers and well-known supplier brands.

We use special screws for different raw materials and pipe diameters, so the raw materials can be well plasticized and viscous pipes can be obtained. This extruder will be suitable for many standards and applications in corrugated pipe manufacturing. The unique combination of screw and barrel has been perfected through theoretical research. The screw rod will be made of alloy steel and processed with nitrogen gas. It will have excellent hardness ability. At the same time, it will have wear resistance and corrosion resistance.

The proven design and reliability are the main features of low-noise gearboxes. Splash lubrication will ensure minimum maintenance requirements. The gears and bearings in the gearbox will be lubricated in a standard manner. Meanwhile, the lubrication system of the oil pump will be designed to forcibly circulate the engine oil.

The energy-saving generator comes from the Siemens brand. Moreover, the motor and reducer are directly connected through a coupling, resulting in a longer service life.

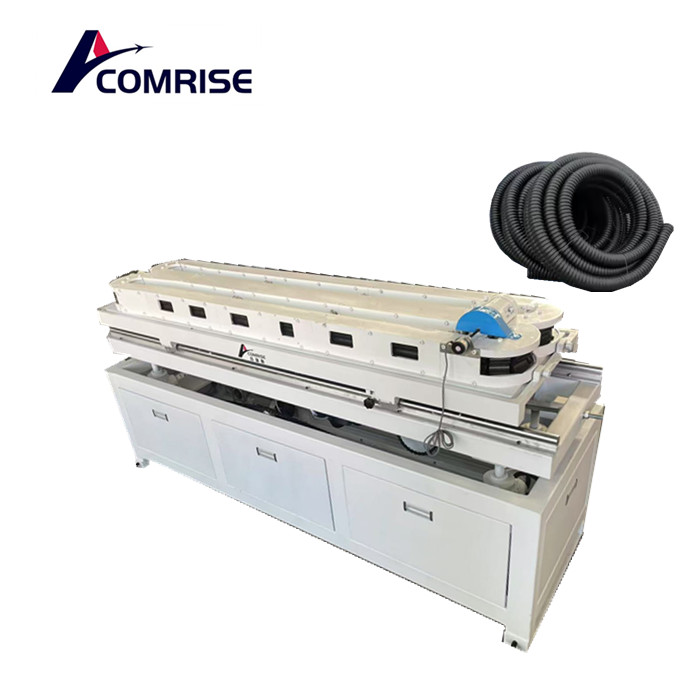

3. Forming machine

According to the module connection method, we have two types of molding machines. One method is to assemble module blocks and chain pieces through chain shafts, and then move them on the base plate driven by gears. The bottom plate can be cooled by circulating water, and the mold frame can be cooled by fan air.

Another type is the high-speed type, where all module blocks are arranged on the track of the molding machine and have high-speed operation driven by upper and lower double gears. This module can be cooled by water and fan air. Efficient cooling ensures rapid cooling of module blocks, making it easy to obtain high-quality single-walled corrugated pipes in high-speed production.

According to the requirements of the corrugated pipe type, we have developed a vacuum forming system to ensure the production of various shaped pipes. Comrise High speed single wall corrugated pipe machine can produce fixed length inlet and outlet pipes for washing machines, as well as collapsible pipes with joints, circular and flat prestressed plastic corrugated pipes, etc.

4. Mold block:

We have professional mold design technicians, mold processing machines, and machining center machines. We can design and process various corrugated pipe module blocks, corrugated pipe joint module blocks, letter engraving module blocks, and other types of corrugated pipe blocks according to customer requirements. All module blocks are made of specialized grinder steel, with high hardness and strong wear resistance.

We have been committed to the research, continuous development, and innovation of corrugated pipe production equipment. We can design and manufacture production lines according to customer requirements. Such as the production line for coating the outer layer of corrugated pipes and the straight through device for corrugated pipe strip steel lines.

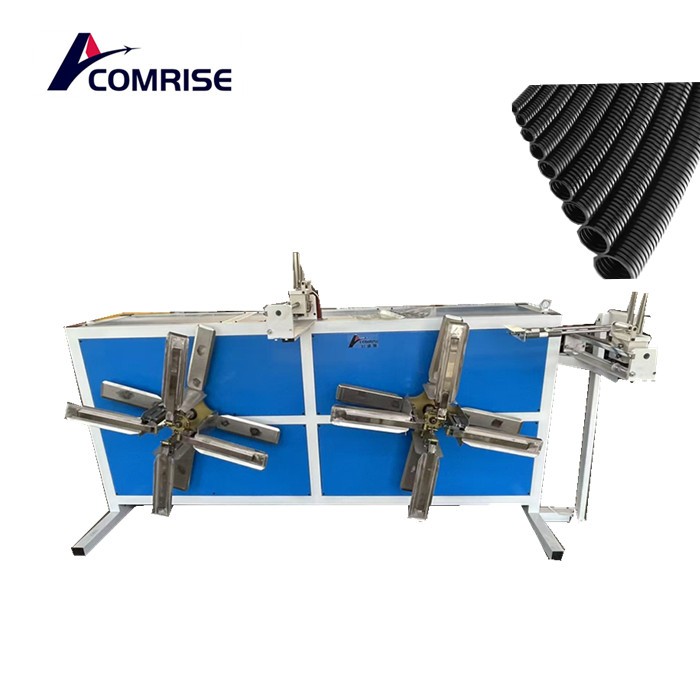

5. Automatic dual station rewinding machine

We can provide the High speed single wall corrugated pipe machine entire production line of corrugated pipe manufacturing machines. An automatic corrugated pipe winding machine that uses polishing rod wire horizontal movement for winding displacement. Automatic cutting machine is a specialized cutting machine for single wall corrugated pipes in automotive wiring harnesses. The automatic tapping machine is specifically designed for automotive wiring harnesses and wire protection conduits. Automatic shrinkage device for single wall corrugated drainage pipes.

We manufacture molds, heaters, thermocouples, high-temperature plugs, guides, and other necessary tools that are of high quality and can be used for the long-term production of different types of single-walled corrugated pipes. Machine related tools (complete set) are used to open and close extruder screws, heads, and other related components, and must be connected to the machine
