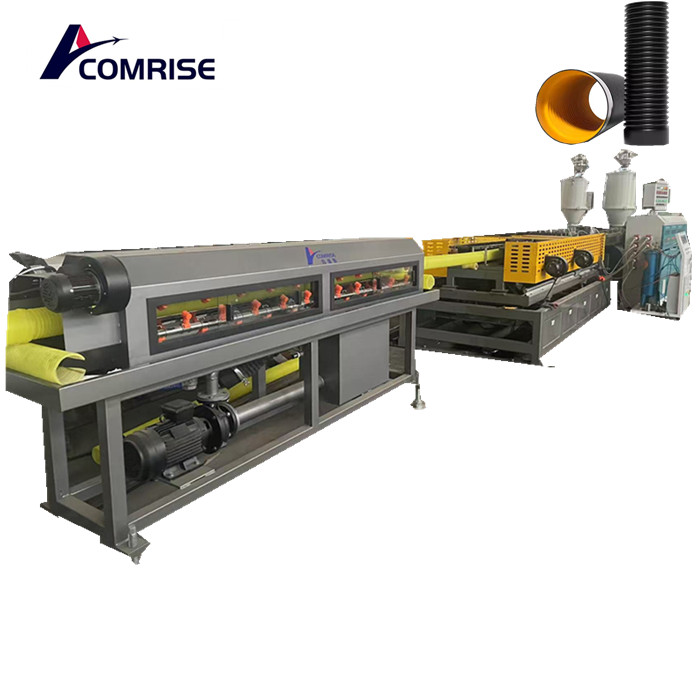

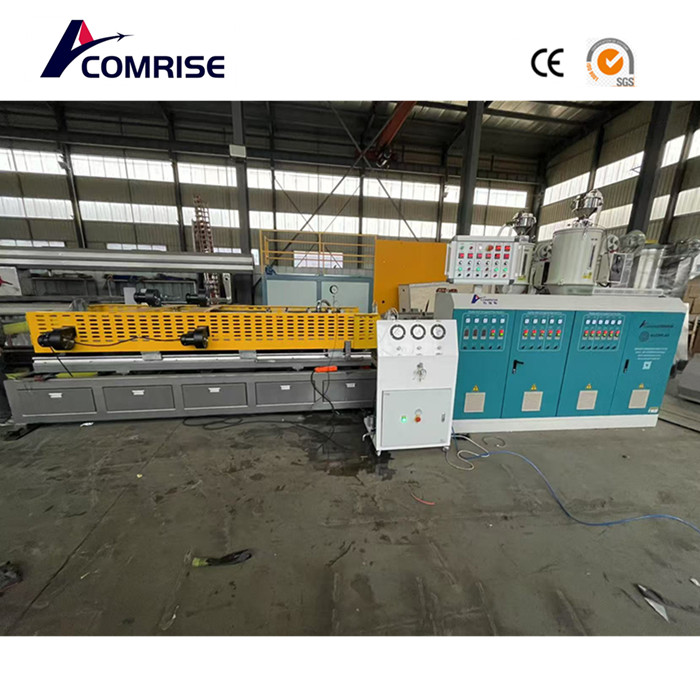

Double Wall Corrugated Pipe Making Machine

DWC pipe extrusion production line/HDPE double wall corrugated pipe production line

The Double Wall Corrugated Pipe Making Machine adopts direct extrusion molding technology, which has high production efficiency and reliable quality. Due to its excellent wall structure design, the weight of the pipes is the lightest, and the cost of pipes is greatly reduced, replacing traditional concrete pipes and cast iron pipes in large quantities.

Qingdao Yongxing Plastic Technology Co., Ltd. specializes in producing HDPE double wall corrugated pipe production lines and PVC double wall corrugated pipe production lines.

The equipment runs stably, with automated production, saving labor, and efficient extrusion. Finished pipes can be automatically cut or wound according to customer requirements.

QINGDAO Comrise MACHINERY CO.,LTD make Double Wall Corrugated Pipe Making Machine of Double Wall Corrugated Pipe Making Machine meticulously developed by our company, through the gear drive module,water cooling in the water trough of the forming machine,the products are air-cooled,so that production of the bellows molding speed,uniform corrugated shape, smooth inside and outside the wall. The production speed is 8-30 meters per minute.PP PVC PE Corrugated Pipe Production Line Plastic corrugated pipe is very widely used in our daily life, It can be used such as threading pipe, drain pipe, pipes, Shisha pipe, shrinking pipe and so on.There are many advantages of plastic corrugated pipes:

1.Compared with the plate pipe, corrugated pipe has lighter weight, save material, lower energy consumption, cheaper;

2.Corrugated pipes with smooth inner wall can reduce the flow resistance of liquid in the pipe, improve the transmission capacity;

3. Good performance in resistance to chemical corrosion, can resist the effect of alkali in the soil.

Double Wall Corrugated Pipe Making Machine adopts extruding and forming process, it has the featuresof reliable quality and high efficiency.Compared with other plastic pipe wall structure ,double wall corrugated pipe has excellent wall structure design,its low weight reach the lower production cost and improve the market competitiveness.The pipe is widely used in various field instead of concrete pipe and iron pipes,because it has excellent features such as:easy connected and accessiories installed,and quality reliable.

SBWG series Double Wall Corrugated Pipe Making Machine can continuously produce HDPE double - wall corrugated pipe and this line can achieve on-line belling.

The machine has the function of automatic demoulding when power is off.

The extruder adopt high-efficiency screw, the die head adopts double-layer spiral structure, mould die and core die being nitrided

The forming machine adopts vacuum forming type, equipped with automatic lubrication system.Forming mould is made of aluminiumalloy, adopt water cooling type.

The pipe can be cut by on-line cutting machine automatically.

Our Double Wall Corrugated Pipe Making Machine can use the  aluminum module which with water cooling can vacuum cooling for high speed.We have professional designers and sophisticated processing machine to ensure the accuracy of the mould block.

Advantage of our Plastic DWC double wall corrugated pipe machine1. The main machine adopts special designed high efficiency screw which is specially used for polyolefin,it has the features of stable performance and high effiency.The machine has two independence extruders,which can realize both inside and outside layer with different material and colors.

2. Composite extrusion die head with specially helical structure to make the wall thickness unifom and stable production.

3. The forming machine has automatic power-off protection device.The forming machine an antomatically exit from the die head to avoid equipment failure in case of electrucity cut off suddenly.It also equipped with new type high transmitting ratio reducer, easy to operate and mainteance.

4. The corrugated forming system is in combination with water cooling and air cooling to sensure high production speed

continuously.Advanced programmable lubricating system minimizes the moulds wear so as to increase the life of service and ensure work smmothly with high precision to ensure the products quality stability.

5. Mould adopts specialy alumium alloy material and high precision die casting forming mould method,it has the advanages of high precision,high stremgth,good wearability and better heat dissipation performance.

6. Wave structure launched a comprehensive new optimization design to reach the best combination of high-rigidity and low weight.
