China factory comrise 800-2000mm PE Hollow Wall Winding Pipe Machine is an extrusion production line that specializes in the manufacturing of large diameter hollow wall winding pipes. The pipe is made using high-density polyethylene (HDPE) material, chosen for its high strength, durability, and resistance to impact and abrasion. The machine uses a winding process to create the pipe, wrapping the HDPE material around a mandrel, which is then slowly pulled through the extrusion line. The result is a lightweight, yet sturdy pipe that is well-suited for use in municipal and industrial drainage systems, sewage systems, and similar applications. The Comrise high quality 800-2000mm PE Hollow Wall Winding Pipe Machine features advanced controls and automation, allowing for precise temperature and speed control, as well as real-time monitoring of production parameters. The 800-2000mm PE Hollow Wall Winding Pipe Machine is ideal for large-scale pipe production, with output rates ranging from 300-600kg/h.
Model |
Pipe range(mm) |
Extruder |
Installed power(kw)Loading factor 50% |
Max.Capacity kg\h
|
Overall dimension(L*W*H) |
||
|
|
Model |
L\D |
Motor power |
|
|
|
HC-800 |
200-800 |
SJ75\33 SJ65\33 |
33:1 |
55 30 |
145 |
290 |
23*10*3.2 |
HC-1200 |
300-1200 |
SJ90\33 SJ65\33 |
33:1 |
75 37 |
175 |
380 |
24*10*3.5 |
HC-1600 |
800-1600 |
SJ100\33 SJ75\30 |
33:1 |
110 45 |
250 |
540 |
26*11*5 |
HC-2200 |
1200-2200 |
SJ100\33 SJ75\30 |
33:1 |
132 55 |
280 |
740 |
32*16*6 |
HC-2600 |
1400-2600 |
SJ120\33 SJ75\33 |
33:1 |
132 75 |
260 |
500 |
39*17*6.5 |
HC-3000 |
1800-3000 |
SJ120\33 SJ75\33 |
33:1 |
160 75 |
330 |
820 |
42*17*7 |
HC-4000 |
2000-4000 |
SJ150\33 SJ90\33 |
33:1 |
250kw 90kw |
440 |
1200 |
48*20*7.5 |
First stage for Rectangular profile extrusion line
NO |
Description |
Quantity |
Unit |
1 |
Auto feeding and hopper |
1 |
set |
2 |
single screw extruder for squre tube |
1 |
set |
3 |
square tube extrusion machine die head, molds |
1 |
set |
4 |
Vacuum water tank |
1 |
set |
5 |
Spray water tank |
1 |
set |
6 |
Halling off machine |
1 |
set |
single screw extruder for extrusion squre profile
square tube extrusion machine die head, molds
Water cooling tank
Profile Halling off machine
NO |
Description |
Quantity |
Unit |
1 |
Auto feeding and hopper |
1 |
set |
2 |
single screw extruder for melt glue |
1 |
set |
3 |
Coated glue die head |
1 |
set |
4 |
winding pipe forming machine |
1 |
set |
single screw extruder for melt glue with Coated glue die head
800-2000mm PE Hollow Wall Winding Pipe Machine with forming molds
200-800mm pe spiral forming machine photos
300-1200mm oe hollow spiral forming maachine photos

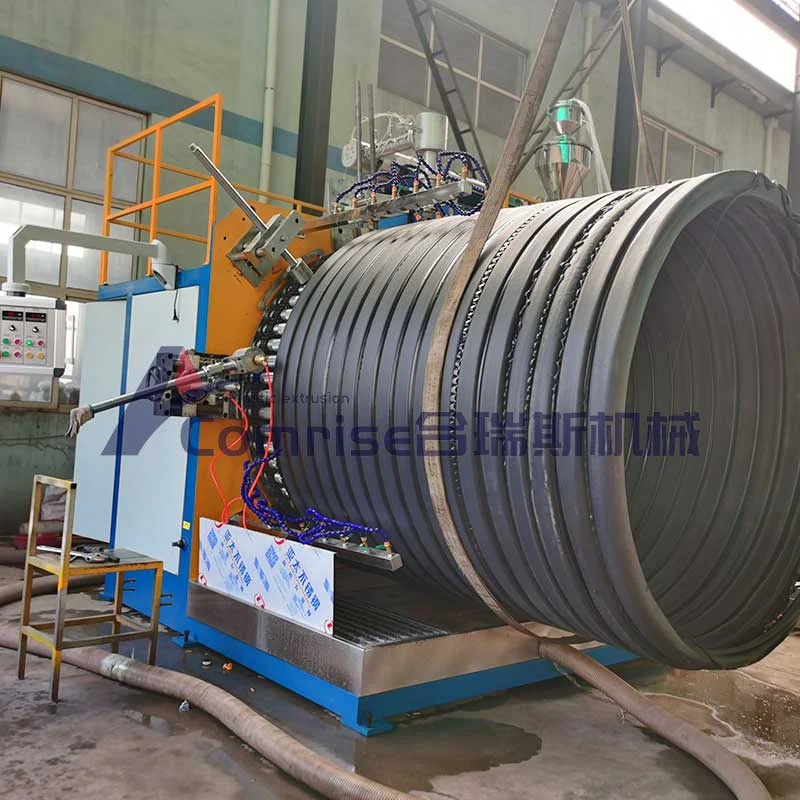

800-2000mm pe hollow wall winding pipe machine photos
3600mm hdpe hollow spiral winding pipe machine photos
4000mm hollow pipe machine photos
processing photos
The main machine adopts a high-efficiency single-screw extruder to ensure efficient and high-quality extrusion.
It adopts a composite machine head, spiral rotation molding, exquisite mechanism and unique design to ensure high product quality.
Easy to operate, stable and reliable
The pipe can be used in plastic inspection wells and septic tanks, making construction convenient and safe.
Can produce anti-static gas extraction and exhaust pipes for mines
Special pipe fittings are used for convenient connection and economical construction.
China COMRISE is a company specializing in the manufacturing of high-quality plastic extrusion equipment, including PE Hollow Wall Winding Pipe Machine, plastic water pipe machine, plastic sheet machine and plastic profile equipment, as well as other plastic winding pipe equipment. With over 30 years of experience in the industry, COMRISE has a mature and professional team of engineers and customer service representatives. We are dedicated to providing top-of-the-line products and services, with strict quality control measures throughout the development, production, testing and after-sales processes. Our equipment is widely used in various industries such as construction, agriculture, and petrochemicals. We value communication and collaboration with our customers, tailoring our products and solutions to meet their needs, and providing timely and efficient technical support. We look forward to working with you to move the plastic extrusion equipment industry forward.
What is the maximum burial depth for HDPE pipe?
The maximum burial depth is highly influenced by the type of backfill and level of compaction around the drainage pipe. General maximum cover limits for 100 mm (4”) through 1500 mm (60”) ADS N-12, N-12 ST, N-12 WT ADS HDPE dual wall pipe per CSA B182.
HDPE Pipe of Disadvantages like this:
High thermal expansion.
Poor weathering resistance.
Subject to stress cracking.
Difficult to bond.
Flammable.
Poor temperature capability.
Low strength/stiffness.
Can HDPE pipe be used underground?
HDPE can be installed using any of a variety of methods, not just drop burial or open trench installation. This makes it more versatile than most other pipe materials suitable for underground water supply.
