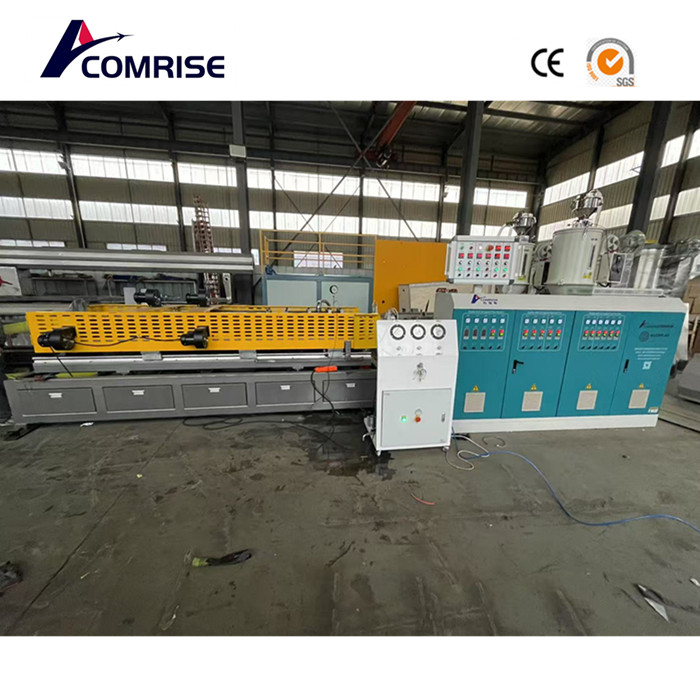

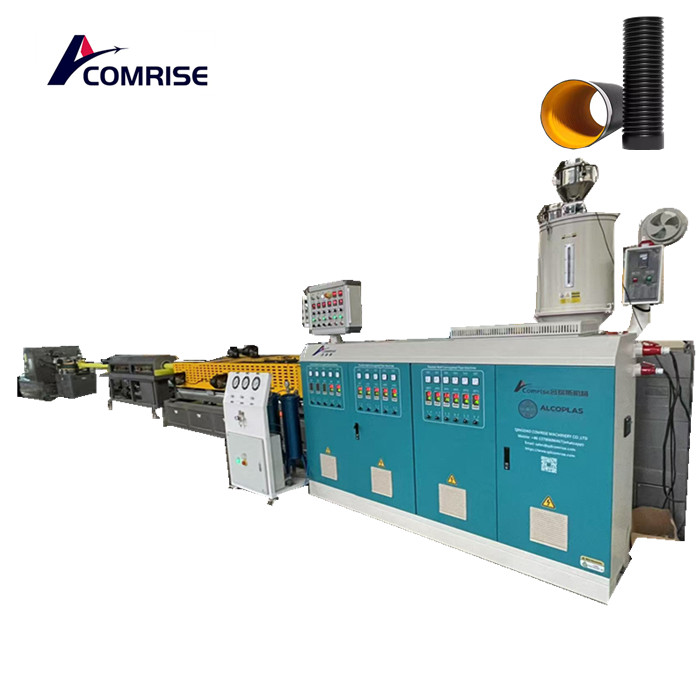

Double Wall Corrugated Pipe Production machine

Advantages of Machines

Main technical features

1. The Double Wall Corrugated Pipe Production machine is equipped with two extruders, double-layer co extrusion, stable substrate, and excellent plasticizing performance.

2. The imported proportional control valve regulates the molding air pressure, ensuring stability and reliability.

3. Double channel spiral composite extrusion mold, surface nitride polishing treatment.

4. Double layer wall thickness adjustment device. Double layer sockets for pipeline materials for online expansion.

5. The horizontal, horizontal, and vertical directions of the workbench can be adjusted in three dimensions.

6. The workbench is equipped with a power-off automatic exit protection system.

7. Automatic lubrication center.

8. The module is made of special aluminum alloy, which is lightweight, sturdy, wear-resistant, and has a low coefficient of expansion.

we are china top machine factory supply completely line

The molding module adopts air and water cooling, with good cooling effect and fast molding speed.

The entire production line is controlled by PLC microcomputer, which intuitively displays the temperature, pressure, faults and other images of the solution, and has the function of storing the extrusion process.

Particle or powder materials can be used for PE, PP, and PVC extrusion.

Vertical, horizontal, and shuttle molding machines are available for selection.

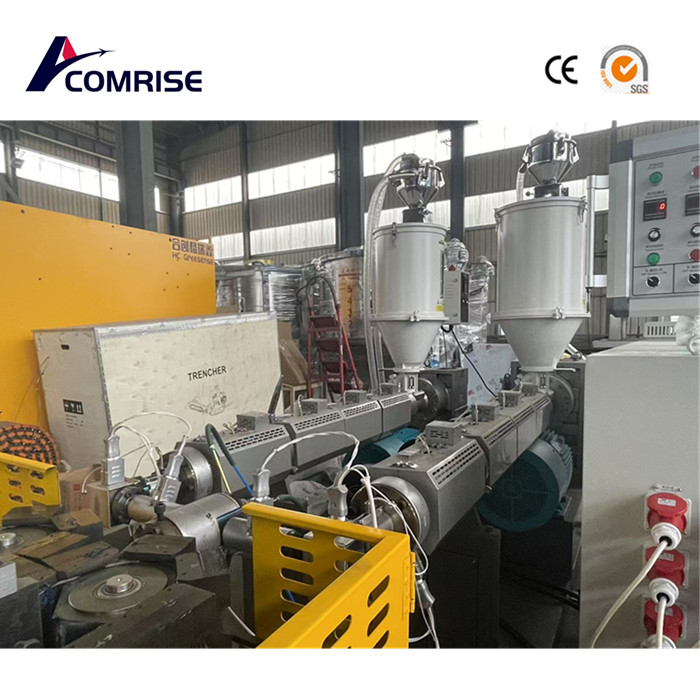

The Double Wall Corrugated Pipe Production machine  extruder consists of a screw rod, cylinder, reducer, extruder head frame, water and air cooling system, lubrication system, temperature control system, gearbox, etc. All parts are manufactured by well-known manufacturers and well-known supplier brands.

Comrise use special screws for different raw materials and pipe diameters, so the raw materials can be well plasticized and viscous pipes can be obtained. This extruder will be suitable for many standards and applications in corrugated pipe manufacturing. The unique combination of screw and barrel has been perfected through theoretical research. The screw rod will be made of alloy steel and processed with nitrogen gas. It will have excellent hardness ability. At the same time, it will have wear resistance and corrosion resistance.

The proven design and reliability are the main features of low-noise gearboxes. Splash lubrication will ensure minimum maintenance requirements. The gears and bearings in the gearbox will be lubricated in a standard manner. Meanwhile, the lubrication system of the oil pump will be designed to forcibly circulate the engine oil.

The energy-saving generator comes from the Siemens brand. Moreover, the motor and reducer are directly connected through a coupling, resulting in a longer service life.

Very professional machine supplier

Type A: Water cooled, one machine can be used for all sizes of 40-250mm. The speed can reach 3-5m/min. B

Type, vacuum cooled, speed 2-4m/min, one machine for 40-110mm and the other machine for 110-250mm

Material: High quality water-cooled aluminum mold

Sliding rail: Equipped with specially processed silicon rails, it has high processing strength and good wear resistance.

Cooling system: An efficient cooling system can ensure the quality of molding.

Lubrication system: Double Wall Corrugated Pipe Production machine equipped with centralized lubrication device, automatic quantitative lubrication.
