Single wall corrugated pipe is being tested

The special corrugated structure ensures the rigidity and flexibility of the single-walled corrugated pipe .Nowadays,single wall corrugated pipes are becoming increasingly popular in municipal engineering,telecommunications engineering,industrial cabinet assembly,and interior decoration of enclosures.Due to their excellent flexibility,strong impact resistance,corrosion resistance,light weight,and fire resistance characteristics

The single wall corrugated pipe machinery developed by our company adopts gear operation modules and templates, thereby achieving circulating water cooling and air cooling of the product, ensuring fast production speed and uniform waveform Uniform,consistent seams, and smooth inner and outer walls.High speed design technology was introduced from Germany, and according to different needs, it has 72 or 80 pairs of molds.

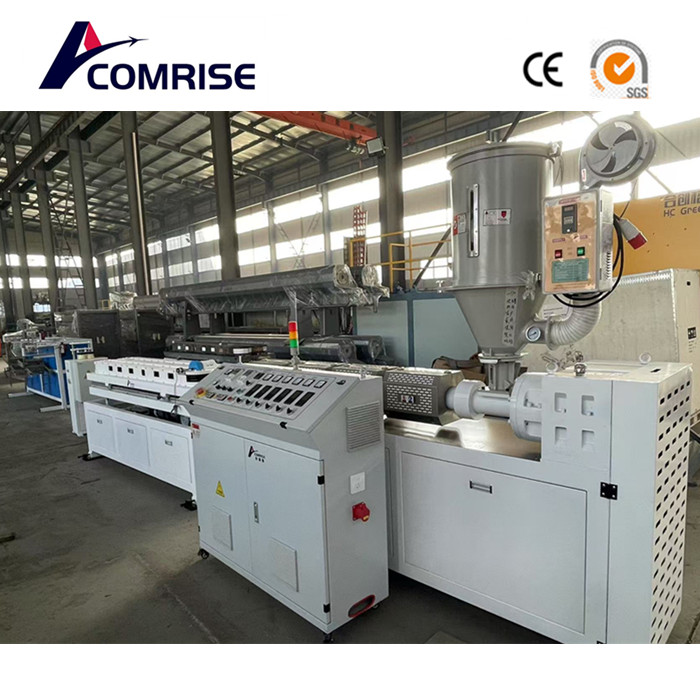

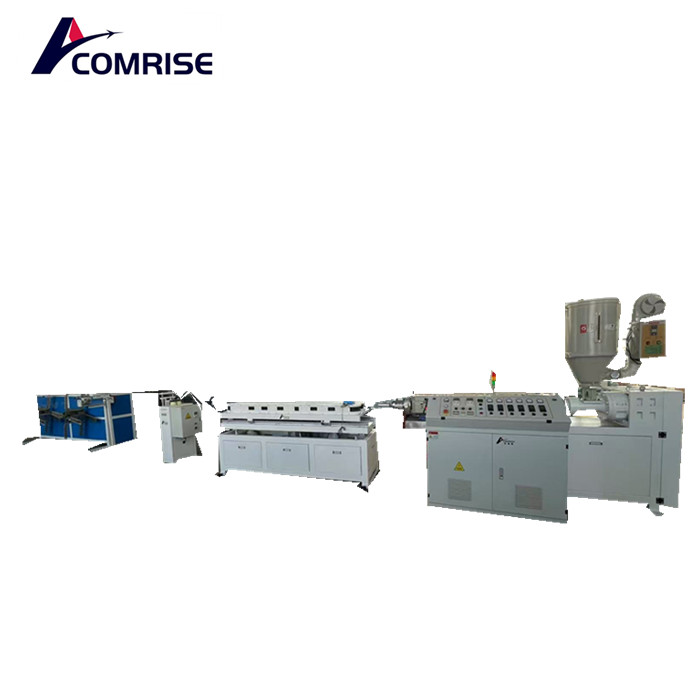

The PVC and PE single wall corrugated pipe production line produced by Qingdao Comrise Machinery Co.,Ltd.This equipment consists of a plastic extruder,a single wall corrugated pipe extrusion mold,a corrugated forming device,a cutting machine,and a winding machine By configuring different extruders and extrusion molds,our single wall corrugated pipe production line can produce high-quality PVC single wall corrugated pipes with high wear resistance,high temperature resistance,and uniform corrugated forming characteristics during high-speed production.

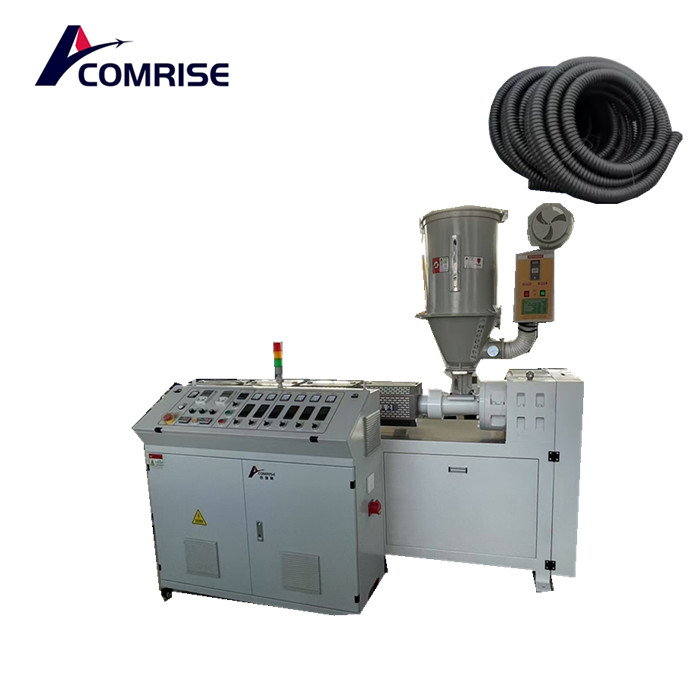

Extruder Screw

Diameter: 45mm

Length to diameter ratio: 30:1

Material: 38CrMoAlA

Surface: nitriding, polishing

Barrel

Material: 38CrMoAlA

Heating power: 8kw

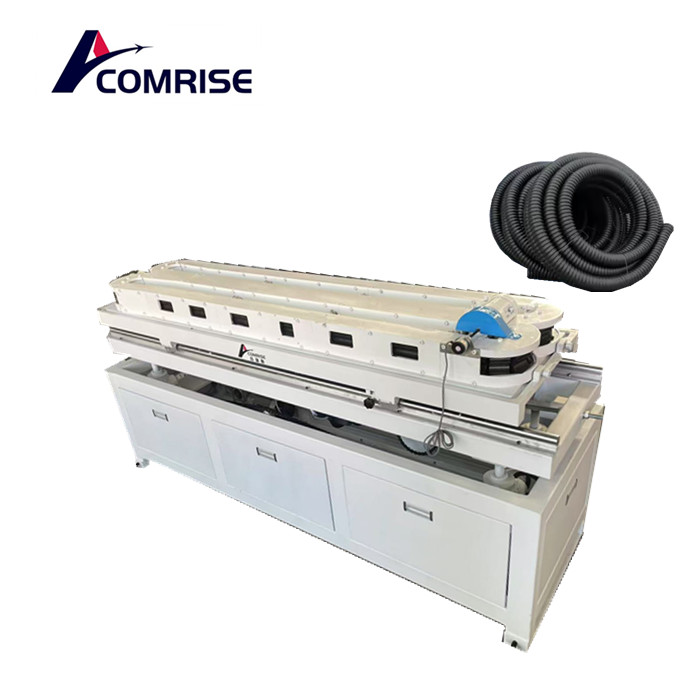

High speed forming machine

1.For the entire board, we use a brand new upgraded material with a hardness of 63.4hrc, corrosion resistance, and longer service life, making the entire machine run more stably, with higher output efficiency and better quality.

2. Molding machine adjustment: left and right manual control, up and down electric control.、

Double station winding machine

The automatic winding machine can balance the speed between pipe making and rewinding. When the pipe production is slow, the device will stop rewinding to prevent the pipe from being too tight or disconnected. Its counter can adjust the winding speed through induction, improving the winding efficiency. The wheels added to the machine are easy to move and convenient to operate.
