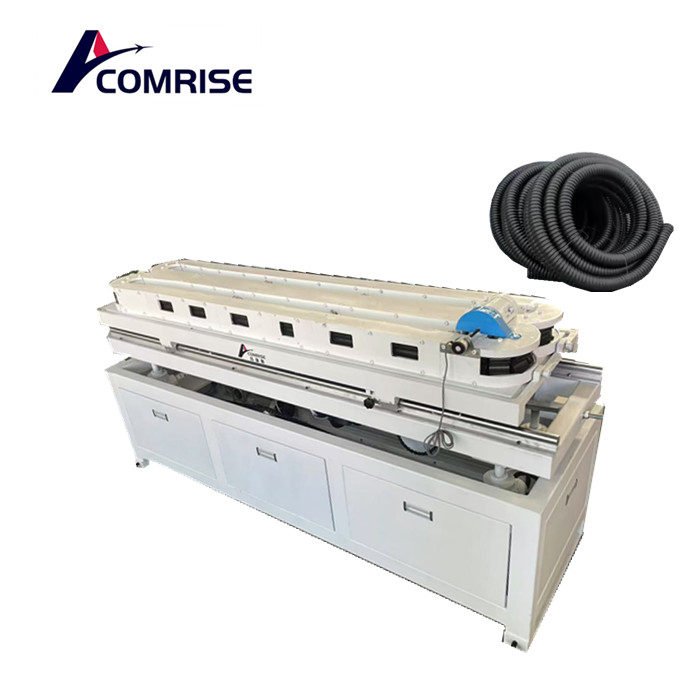

High speed single wall corrugated pipe machine manufacturing completed

The special corrugated structure ensures the rigidity and flexibility of the single-walled corrugated pipe .Nowadays,single wall corrugated pipes are becoming increasingly popular in municipal engineering,telecommunications engineering,industrial cabinet assembly,and interior decoration of enclosures.Due to their excellent flexibility,strong impact resistance,corrosion resistance,light weight,and fire resistance characteristics

The single wall corrugated pipe machinery developed by our company adopts gear operation modules and templates, thereby achieving circulating water cooling and air cooling of the product, ensuring fast production speed and uniform waveform Uniform,consistent seams, and smooth inner and outer walls.High speed design technology was introduced from Germany, and according to different needs, it has 72 or 80 pairs of molds.

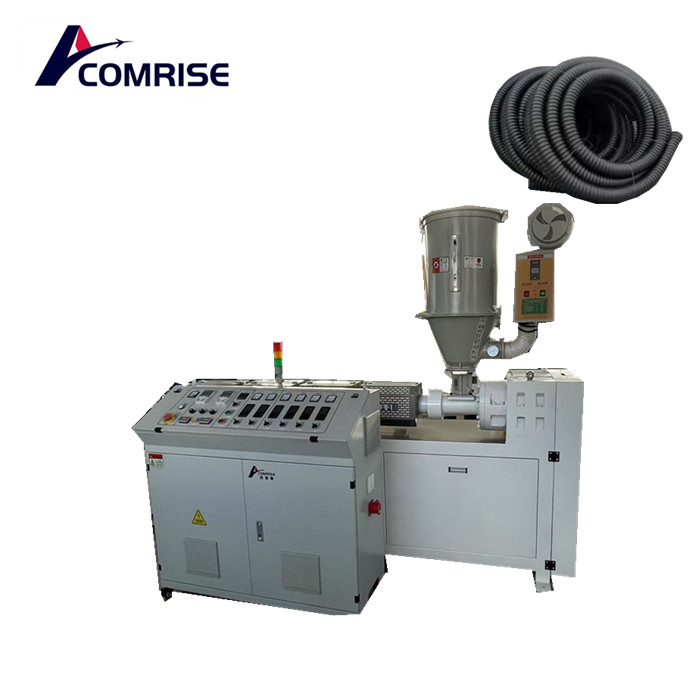

1.ExtruderScrew

Diameter: 45mm

Length to diameter ratio: 30:1

Material: 38CrMoAlA

Surface: nitriding, polishing

Barrel

Material: 38CrMoAlA

Heating power: 8kw

Comrise's latest technology combines core rods with nozzle molds. When changing the size, it does not require separate changes to the core rod and nozzle mold like in the old design. It can save over 2 hours for customers.

1. The mold head can prevent corrosion and produce PP, PE, and PVC through electroplating.

2. Adding rock wool and 20mm to the heater ring can help maintain heat and save 30% of electricity for customers

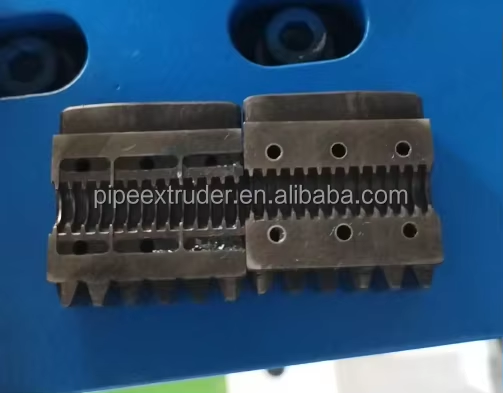

High speed forming machineFor the entire board, we use a brand new upgraded material with a hardness of 63.4hrc, corrosion resistance, and longer service life, making the entire machine run more stably, with higher output efficiency and better quality.

2. Molding machine adjustment: left and right manual control, up and down electric control.
